Air Cleaner

Unit

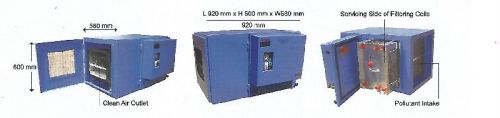

L 920 × H 600 mm × W580 mm

Controls

Auto cut – off switch when door is opened. Indicator lights for fault, normal or wash function

Cabinet

Finishing

Weight

Air Volume

Air Flow

Static Pressure Reqd

1.2 mm Electro Galvanized Steel

Powder Coated

50 kg

1700 to 2500 cmh

Left to Right, Right to Left

80 to 100 pascal

Cell

H : 483mm, W: 340mm, L 570mm,

Weight: 19 kg

Ionizing voltage: 12 Kvdc

Collector voltage : 6 Kvdc

Collection plates.

Face Area is 0.198 sqm.

Effective collection area is 5.8sqm

Operating Voltage

220 Vac+/-10%, 50Hz(Single phase)

Power

Consumption upto 50 Watts max

Features

Short circuit, arc protection and auto

Aluminum frame with stainless

Steel mesh, washable

Effciency

Power restore for power pack

Up to 95%, meets NIOSH 5026 Oil mist Test (National Institute for Occupational Safety and Health) and ASHRAE Standard 52.1

Pre-flter

Installation

Ceiling suspended, wall or frame

mounted

Particle Size

Collects particles as small as 0.01

Options

1 ) Dry contact for Building

      Management System (BMS)

2 ) Auto wash system programmable
