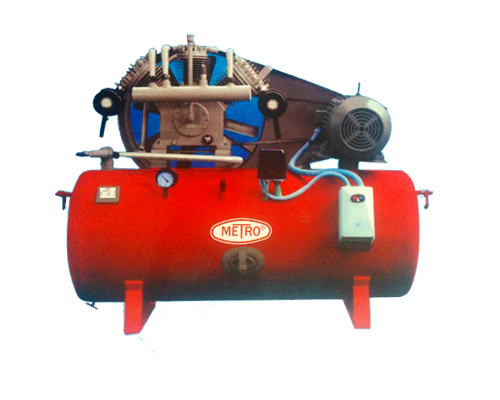

Air compressor, Horse Power : 30 HP

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Finger type valves are provided for easy flow of air and efficiency.Automatic pressure switch is provided in higher capacity portable units.Special fan type flywheel for maximum air-cooling.The....

View More Details

Send Enquiry

Company Information

Bee Tee Traders (india)

Chickpet, Bangalore, Karnataka

View Number

Member Since 17 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Finger type valves are provided for easy flow of air and efficiency.
Automatic pressure switch is provided in higher capacity portable units.
Special fan type flywheel for maximum air-cooling.
The non-return valves and relief valves have synthetic rubber seats for longer life. Hand holes for easy cleaning and maintenance in big size receivers.Inter coolers are provided in heavy-duty multi cylinder compressors.
The smaller capacity compressors are fitted with ball bearings to the connecting rod, which will give smoother running and longer life.
Standard equipment includes air filter, gauge, relief valve, and non-return valve; drain cock, vee belt drive, adjustable slide rails etc.

SINGLE STAGE SINGLE CYLINDER UNITS

S.No.	Model	No.of. Cylinders	RPM	Displacements Min.	C.Ft/Ltr. Min	Working Pressure		Motor H.P	Tank Capacity Litres
						PSI	Kg. / CM2
1.	DENTAL	1	550	2.7	72	43	3	0.50	20
2.	SC 5	1	550	2.7	72	43	3	0.50	30
3.	SC 6	1	650	3.1	95	57	4	0.50	36
4.	SC 7	1	650	4.6	128	70	5	1	55
5.	SPLM 8	1	700	4.6	162	98	8	1	70
6.	SC 8	1	700	6	162	112	8	1	110
7.	SC 9	1	700	6	162	120	8.5	1.50	125
8.	SPLM 10	1	700	6.8	183	142	10	2	160
9.	SSC 10	1	700	12	313	142	10	2	200
10.	SSC 11	1	700	15	407	171	12	3	225
11.	SSC 12	1	700	20	540	171	12	5	275
12.	SSC 13	1	700	24	662	171	12	7.5	330
SINGLE STAGE DOUBLE CYLINDER UNITS
13.	DC 8	2	700	7.4	204	110	8	1.5	110
14.	DC 9	2	700	10	275	120	8.5	2	125
15.	DC 10	2	700	10	275	142	10	2	160
16.	DC 11	2	700	24	662	156	11	3	275
17.	DC 12	2	700	30	830	171	11	5	300
18.	DC 13	2	700	40	1040	171	11	7.5	330
19.	DC 14	2	700	48	1296	171	12	10	425
20.	DC 15	2	700	68	1934	171	12	12.5	525
SINGLE STAGE THREE CYLINDER UNITS
21.	THC 18	3	700	35	945	171	12	10	425
22.	THC 19	3	700	48	1226	171	12	12	425
23.	THC 20	3	700	61	1691	171	12	15	525
24.	THC 21	3	700	70	1900	171	12	20	700
TWO STAGE THREE CYLINDER UNITS
25.	TCH 18	3	700	25.0	690	185	13	10	45
26.	TCH 19	3	700	31	830	198	14	12.5	425
27.	TCH 20	3	700	41	1080	198	14	15	525
28.	TCH 21	3	700	48	1296	198	14	20	700
