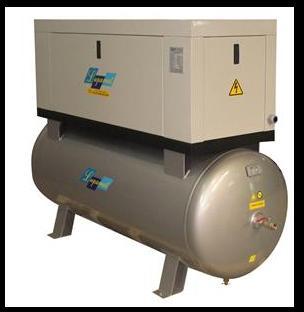

Air compressor, Discharge Pressure : 8 Bar

• wo stages
• With Automatic Drain
• With Dust Holding Bowl
• Filter Elements Very Easy to change
• With Paper Element
• With Electric Indicator

PNEUMATIC SYSTEM: INCLUDES:

AIR SUCTION CONTROL VALVE - which provides the operation option of constant unloaded, constant loaded /unloaded or adjustable order. Also in cases of sudden shut down where pressure is present or during the normal stops, it prevent the air/oil mixture from flowing backwards. (function like check valve)
PISTON FOR SUCTION CONTROL VALVE- Which opens and closes the intake control valve.
MODULATED CONTROL VALVE -  Which helps the compressor in producing as much air as is consumed and provides regular working and energy save.
MINIMUM PRESSURE VALVE - Which prevents air from entering from the tank before the inside pressure of the tank has reached 3.5 bars.

BURKERT TRADEMARKED 3/2 WAY SOLLENOID VALVE  - Which enables the compressor to work unloaded and loaded. It controls the suction control valve piston.

TORC OR ASCO TRADEMARKED 2/2 WAY SOLLENOID VALVE -Which enables the compressor to switch over the smooth load by discharging the air within the separator tank.

MAX. PRESSURE SELECTION RELAY  - which operates the compressor relation to the amount of air that will be used by supplying the control air from the outlet pressure or internal pressure.

OIL FLOW INDICATOR  - which checks the flow of the oil collected during the separator's second stage as It is send to the air end bearings.

FILTH HOLDER  - which cleans the oil going to t
