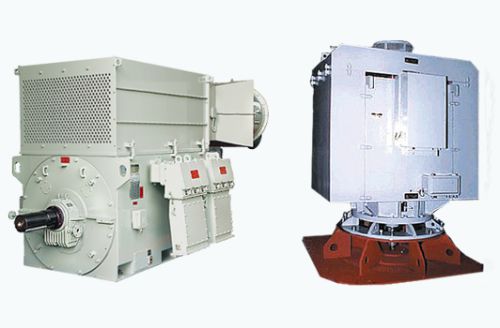

AIR COOLED INDUCTION MOTORS

CG offers CACA Motors, which include TP and FT Series High Voltage Induction Motors.
The TP range of induction motors includes both Squirrel Cage (TPC) and Slip Ring (TPR) motors. These motors have totally enclosed construction. The TPC range consists of foot mounted (IMB3) machines, which complies with both IS :- 2253 and IEC :- 60034-7. The totally enclosed IP55 protection as per IS :- 4691 IEC :- 60034-5 and cooling with air to air heat exchangers comply with IEC 60034-6.
The VTPC range is a variant of the TPC range with flange mounted construction IMV1 complying to IEC 60034 – 7. BTPC range has blowers separately mounted on heat exchanger for the most stringent variable speed application and for higher output designs.
The TP range of motors have been designed to meet diversified application demands, while maintaining excellent performance and highest quality. The robust design helps function with variable voltage, variable frequency drives.
The FT range of induction motor includes FTCFTCV type Squirrel Cage and FTAFTAV type Slip Ring Motors., - FTCFTA types are horizontal and foot mounted (IM B3, IEC60034-7) machines, whereas FTCVFTAV types are vertical, flange mounted (IM V1, IEC 60034-7). These motors are totally enclosed (IP 54, IEC 60034-5), self cooled with air-to-air heat exchanger (IC 6A1A1IC 6A1A6) as per IEC 60034-6.
The range of air cooled motors are also available with an external blower; wherein the cooling is independent of the speed of the motor, which is preferred for variable speed applications.
