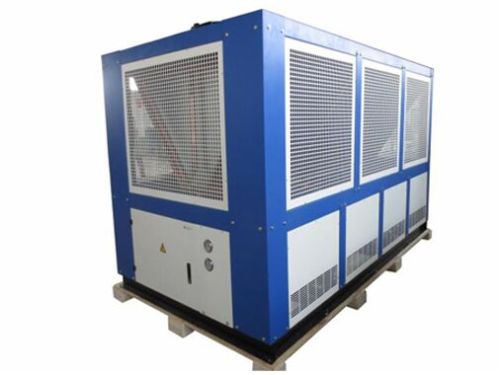

Air Cooled Packaged Chillers

COOLFAB EQUIPMENTS Packaged Industrial air cooled Chillers are designed using sealed and scroll compressors sourced from danfoss and Copeland. These are available with multiple scroll compressors equipped in one machine. These are manufactured with special alloys like steel, worked on ultra lower temperature applications. They include separate and individual refrigeration circuits. Fabricated with a microprocessor that is suitable for process cooling applications ranging from (+) 20°c up to (-) 5°c and for lower temperatures of up to (-) 50°c. These equipments are used with CFC free refrigerants such as R-407c and R-134a. At the side of this, it is available with in-built process pump and stainless steel chilled water expansion insulated tank rated for an ambient temperature of (+) 50°c. It is available in twelve months guarantee and backed by most efficient customer support.

SALIENT FEATURES

• Mobile compact & space saving.
• Easy to install & low maintenance cost.
• Lowest power consumption.
• Energy efficient air / water-cooled compact chillers suitable for working in high ambient conditions.
• Manufactured & Design as per customer application.
• Control panel, visual function & fault indicator, and Digital temperature controller.
• High / Low pressure gauges & Cutout with miniature circuit breaker systems.
• Mimic display on panel.
• Pre-dispatch tested.
• Low noise running and no pollution.

Performance Details

• Chiller Shell & Tube type/PHE with insulated.
• Condenser Air Cooled/Water Cooled Shell & Tube.
• Housing with easy access to all components.
• Suction gas cooled fully hermetic compressor with crank case heating.
• Sight glass with moisture filter, dryer, cooling agent and oil.
• Control panel, visual function & Digital temperature controller.
• High / Low Pressure Gauges and Cutout with miniature circuit breaker system.
• Function control of all main components with visual indication.
• Electrical cabinet accommodating all necessary power and control components.

Design Of The Machine

• Connected with the power of 415 Volt AC +/- 10%/ 50 Hz/ 3 Phase + neutral
• Design evaporating temperature: (+) 5°c
• Design condensing temperature: (+) 55°c
