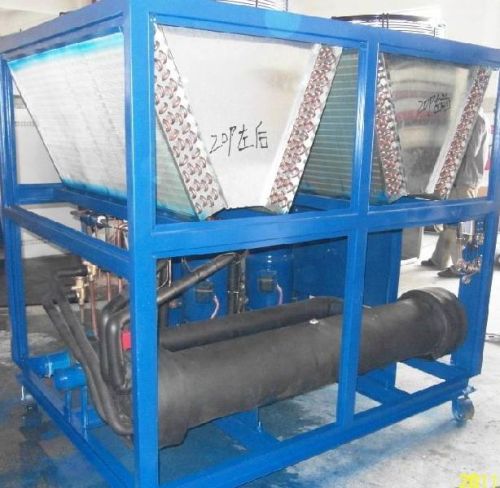

Air Cooled Water Chiller, Brand Name : RIOU

1.without water-cooling tower for easier installation and higher mobility. It is favorable when there is lack of water supply or when water-cooling tower is not applicable.
2.low noise fan motor provides excellent cooling and condensation effects. The throttle unit is stable and is finished with high-grade anti-rust treatment.
3.equipped with a powerful compressor imported from u. S .and europe. The compressor operates smoothly and quietly at high eer value.
Model ro-20a
cooling capacity (kwh) 58
the cold water flow(m3h) 10
air volume( m3h) 20000
refrigerant r407c
temp control scope(℃) 5- 15
compressor input power(kw) 15
pump input power(kw) 2.2
the water pipe size (g") 2"
power supply 3n400v50hz
dimension(l×w×h)mm 2100*1000*2000
weight（kg） 590
disposition：
1.compressor:sanyo；
2.taiwan punp electronic board of micro computer
3.lg exchange the contactor, lg heat relay，carlo phase；
protective device：
1.phase protector
2.fan overload protector
3.highlow voltage protector
4.water level protector
5.anti-freeze protector
remarks:the cooling capacity is calculated according to condenser temperature 45℃, evaporator temperature 2℃
