Air Dryer

We are offering Air Dryer.
一， Working Principle

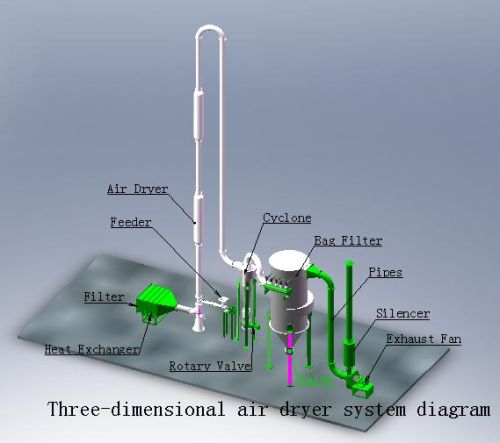

Basic type of Air Dryer is formed by Air Filter, Heater, Feeder, Drying Tube, Fan, Whirlwind Separator, Pulse Dust Collector, Shut Fan, Induced Draft Fan. Etc.
The wet material is through the feeding device and enter in the drying tube together with the heated air, mixed with the heated air completely. In view of the heating area is big, so can achieve the evaporation in short time. The dried products is discharged from cyclone separator, small parts of fine powder is collected by the bag deduster, the end gas released by induced draft fan. Finish the drying process.
二， Structure & Feature
1. Air Dryer with high heating efficiency (30%~80%)
2. Drying period is very short (Normally, within 0.5~2 seconds can be finished the drying process)
3. Continuous operation, with high automatic level, flexible installation, Compact structure, Small occupation area, etc.
三， Application Scope
Air dryer is suitable for drying the Food, medicine, pesticide, chemical, building material with the diameter scope 5μm～5mm every kind of powder, granule, and some of bulk, grease type materials. The normal materials are every kinds of antibiotic powder, pesticide, flour, rice flour, starch, amylaceum, potato powder, corn protein, plant pole end, vinasse, fodder, buggy, metal powder, mineral powder, limestone powder, etc.
