Air Filter Regulators

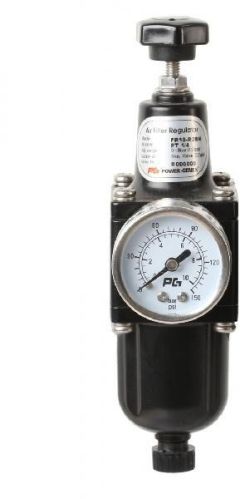

PG FR-10 Aluminium Air Filter Regulator :

• Overview - Quality aluminium housed air filter regulator. Maximum inlet opressure 15 bar, adjustable outlet pressure between 0-4 or 0-8 bar, supplied with pressure gauge and manual drain.
• Function - To control the pressure being supplied to pneumatic control equipment and to filter the air to 5 microns thereby preventing the possible malfunction from blocked air passages by dirty air supplies.
• Sizing Criteria :

  • Max inlet air pressure 15 bar.
  • 1/4" air ports  BSP or NPT.
  • Max ambient temp range - -20 to +70C

• Options :

  • High temperature version (max +120C)
  • Low temperature version (min -40C)
  • Auto drain.

Stainless Steel Air Filter Regulatorailsafe :

• Overview - Quality stainless steel housed air filter regulator. Maximum inlet opressure 15 bar, adjustable outlet pressure between 0-4 or 0-8bar, supplied with pressure gauge and manual drain.
• Function - To control the pressure being supplied to pneumatic control equipment and to filter the air to 5 microns thereby preventing the possible malfunction from blocked air passages by dirty air supplies.

• Sizing Criteria :

  • Adjustable outlet pressure range 0-4 or 0-8 bar
  • Max inlet air pressure 15 bar.
  • 1/4" air ports.
  • Max ambient temp range - -20 to +70C

• Options :

  • High temperature version (max +120C)
  • Low temperature version (min -40C)
