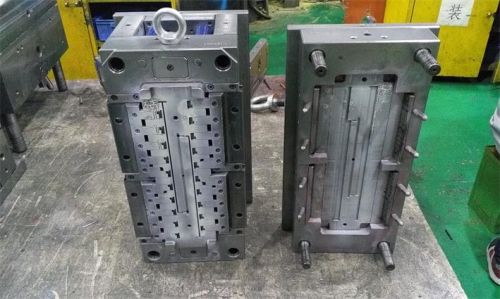

Air Filtration System Injection Mould Part

3K Mold's engineering focus and capabilities provides customers with a partner who provides a positive impact on design considerations that effect the effectiveness and efficiency of the injection molding based production approach.The 3K Mold team works with customers from the prototype stage, through the preproduction stage, and assists with and implements an efficient and effective production, logistics, and quality management process. Project Information   Product Description Part Name Air Filtration System Injection Mould Part Material POM Part Size(mm) 351X17X16 Mould Description Cavity Insert Material Grotidz  1.344 HRC48-52 Core Insert Material Grotidz  1.344 HRC48-52 Slider Insert Material Grotidz  1.344 HRC48-52 Mould Cavities 2 Mold parts Standard Hasco Mold Size 600x350x340mm Mold weight 518 KG Lead time 5 weeks Mould Life Time (Shots) 1,000,000 Mould Type Export to Germany Runner Description Cold runner  Injection Gate Type Edge gate Ejection System Ejector pin Cycle time 30 S Slide Qty. 2 Lifter Qty. 0 Injection moulding machine 200T 3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications. Quality control Center 3K team committed to meet customer quality and delivery request.
