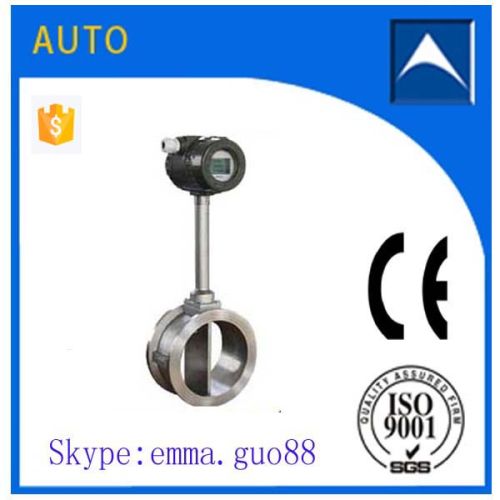

Air Flowmeter Vortex Flow Meter For Gas

₹ 16,290 / 600 600 Piece

MOQ1 Piece(s)
POWER24v
signal4~20mA
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Size DN15 ~ DN300 Medium Liquid Steam Gas Accuracy Pipe Type: ±1.5% (gas, steam), ±1.0% (liquid) Inserted Type: ±2.5% (liquid), ±3.0% (gas)....

Company Information

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1994

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Size DN15 ~ DN300
Medium Liquid  Steam  Gas
Accuracy Pipe Type: ±1.5% (gas, steam), ±1.0% (liquid) Inserted Type: ±2.5% (liquid), ±3.0% (gas)
Temperature -20~350c
Repeatability Pipe Type: 0.5% (gas, steam), 0.33% (liquid)
Inserted Type: 0.83% (liquid), 1.00% (gas)
Rated Pressure GB 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa; DIN PN16, PN25, PN40; JIS 10K, 20K, 40K;
Signal Output Pulse Output, Two Wire 4~20mADC, RS-485, Hart, Modbus
Power Supply 24VDC  3.6V Lithium Battery  Double Power Supply (24VDC, 3.6V Lithium Battery)
Installation Type Flanged Type  Wafer Type  Fixed Inserted  Adjustable Inserted
Adjustable Inserted (with ball valve)
Protection Grade IP65
Explosion Proof Exd II BT3~6  Exia II CT3~6
