Air Leg Rock Drill, Brand Name : tianshui

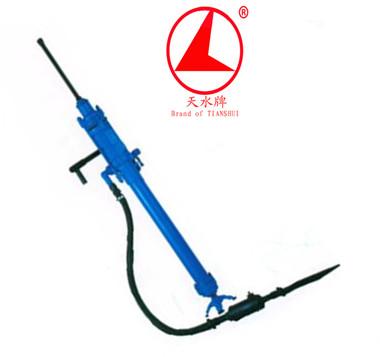

Ysp45 is an upward type high frequency drill machine.it used in mining, shaft sinking and excavate the patio drilling operations, drilling in ground into 60 degrees to 90 degrees upward direction of the hole,it can also be used to anchor installation.
y s p
main data
model
category
ysp45 rock drill
weight 44 kg
physical size(length*wide*high) 1420*390*160 mm
cylinder diameter 95 mm
piston structure stroke 47 mm
air leg propulsion stroke 750 mm
air leg cylinder bore 74 mm
working pressure 0.63 0.5 0.4 mpa
impact energy ≥73.5 ≥70 ≥57 j
drilling air consumption ≤113.3 ≤83 ≤80 ls
drilling impact frequency ≥46 ≥45 ≥42 hz
torque ≥21 ≥18 ≥15 n.m
use hydraulic 0.3 mpa
air pipe diameter 25 mm
water pipe diameter 13 mm
appropriate drilling hole dia. 34~42 mm
suitable for max hole depth 6 m
working temperature -30~50 ℃
bit shank specification h22*108±1 mm
fy500a oiler
weight 2.5 kg
oil capacity 0.52 l
