Air Leg Rock Drill, Brand Name : tianshui

Y19 hand held rock drill is mainly used in small quarry, coal mining, railway, water conservancy and limestone for rock drilling and blasting. Y19 rock drill can be used with ft100 air leg, it's widely used for drilling in the medium-hard and hard rock.

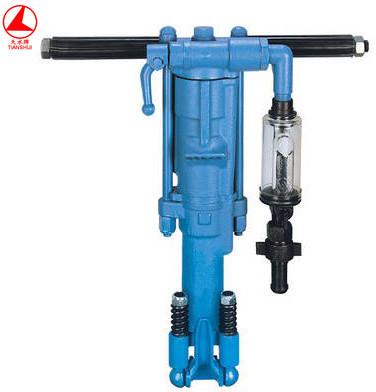

y19 rock drill
weight 19 kg
length 600*534*157 mm
cylinder diameter 65 mm
piston stroke 54 mm
working pressure 0.4 0.5 mpa
impact energy ≥28 ≥40 j
impact frequency ≥28 ≥35 hz
air consumption ≤37 ≤43 ls
torque ≥9.5 ≥12.5 n·m
water pressure 0.3 mpa
air pipe diameter 19 mm
water pipe diameter 13 mm
bore diameter 34-40 mm
working temperature -30~50 ℃
suitable for maximum hole depth 5 m
shank specification 22*108±1 mm
ft100 air leg
weight 12 kg
length 1340 mm
push stroke 1000 mm
cylinder diameter 56 mm
fy200a oiler
weight 1.2 kg
capacity 200 ml.
