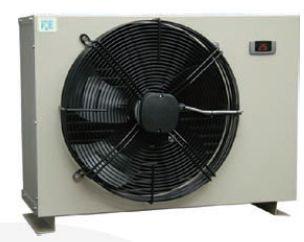

Air-Oil coolers are utilized in applications where the required temperature of the oil can be above ambient. These units are equipped with a Fin & Tube Heat Exchanger and an Axial Fan. Generally Oil from the bleed line of the power pack is passed through the copper tubes and ambient air with the help of the axial fan is blown over these pipes effecting heat transfer. So generally the lowest possible temperature is ambient diy bulb plus 1 O°C for the given capacity flow. The units are also equipped with a digital temperature indicator cum controller. We have the following standard models on offer.
Description Model | AOC 10 | AOC 15 | AOC 30 | AOC 45 | AOC 60 | AOC 75 | AOC 100 |
|---|---|---|---|---|---|---|---|
Capacity in Kilo cal/Hour | 1000 | 1500 | 3000 | 4500 | 6000 | 7500 | 10000 |
Oil flow in LPM | 10 | 20 | 30 | 40 | 40 | 60 | 80 |
Power input in Watts | 80 | 80 | 120 | 260 | 450 | 650 | 1250 |
Source | Both 230 Volts 1 Phase 50 Hz & 415 Volts 3 Phase 50 Hz | ||||||
Cooling Fan | Axial fan with basket grill | ||||||
Dimensions (mm) L | 450 | 750 | 850 | 950 | |||
B | 225 | 325 | 350 | 350 | |||
H | 420 | 580 | 780 | 1250 | |||
Weight-Dry | 12 | 18 | 25 | 40 | 55 | 65 | 75 |
