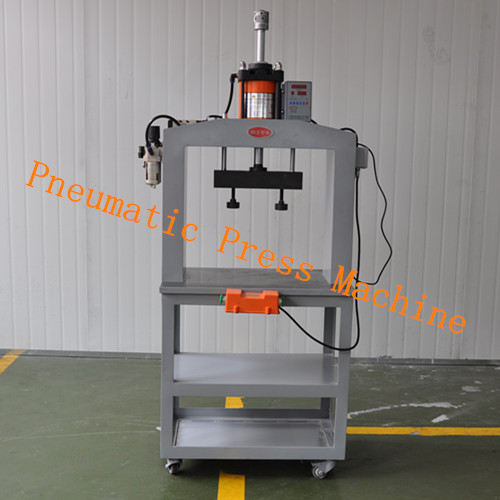

Air Press Machine

We are offering air press machine.
non-standard plan can be customized according to customer's demand
fbq-s1200
product feature
1.compressed air as power source, easy to operate.
2.adopt microcomputer control,use small space,easy to operate, beautiful appearance.
3.no hydraulic system noise,can reduce electricity consumption and thus reduce production costs.
4.output force adjustment easy,as long as regulate the input air pressure,should be able to achieve the required pressure.
5.safety designed,using both hands to operate,with emergency stop and jog up and down function.
6.multi-use,for pressing,punching,riveting, assembly,cutting and so on.
Technical parameter
model
max working height 315mm
cylinder stroke 125mm
table size 500*600mm
using pressure 0.4-0.7mpa
power ac220v
using pressure theory pressure
0.4mpa 7.71kn(771kgf)
0.5mpa 9.64kn(964kgf)
0.6mpa 11.57kn(1157kgf)
0.7mpa 13.50kn(1350kgf)
weight 350kgs
