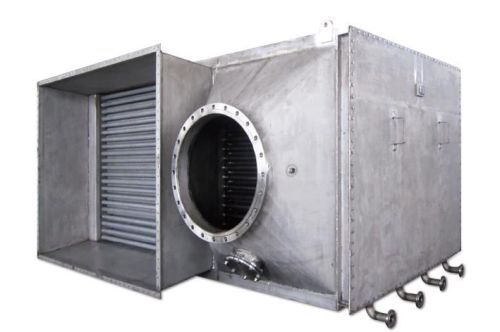

Air To Air Heat Pipe Heat Exchanger

General Information
Heat pipe structure
A. composed by a shell and the working fluid，shell is evacuated and the working fluid is sealed in the shell.
B. The heat pipe is divided into the evaporator section (Heated) and condenser section (cooled).
Air To Air Heat Pipe Heat Exchanger
Heat transfer principle
Heat pipe heat exchanger consists of six consecutive process:
A. Endothermic--the working fluid is heated by exhaust gas in the evaporator section。
B. Evaporation—The working fluid evaporates. (in the shell , vacuum, Low evaporation temperature)
C. Gaseous working fluid conveyor---The working fluid flow to condenser section with the waste heat.
D. Condensing--Gaseous working fluid is condensed when it exposes to low temperature shell wall.
E. Exothermic-- The working fluid releases a lot of heat when it is condensed and
the heat is taken away by the cold fluid.
F. The working fluid reflux-- after condensed, the working fluid is back to the evaporator section by gravity or capillary pumping forces.
