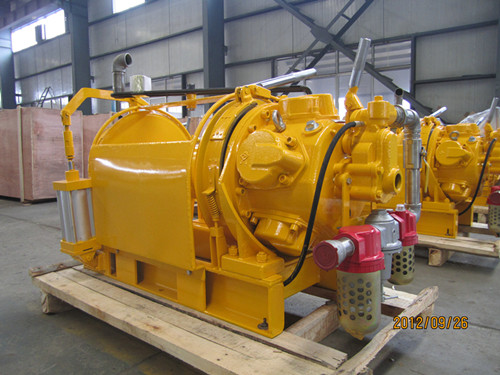

Air Winch, Pneumatic Winch, Brand Name : Juling

We are offering air winch, pneumatic winch (model no.: xjfh 5/35 ). 1.application:air winch is ideal equipment for transmitting or lifting heavy cargo in petroleum drilling field, marine industry,mining and construction industry.
2.standard air winch features :
1).radial piston air motor. Provide positive power with precise control.
2) compact structure. Keep out dirt and dust. All parts are sealed and complete lubricated in oil and grease.
3). High sensitive control valve provides flexible control with variable speed.
4).easy operation, high safety and reliability, easy maintenance, stable performance
model xjfh-535 *
max. Lifting force 50kn
max. Lifting speed 35mmin
rated power 16kw
rated air intake pressure 0.8mpa
rated air consumption 18.3m3min
wire capacity 140m (single brake )
120m (double brake)
diameter of wire 20mm (34 in)
base connecting dimension 912mm×500mm
(high base)
912mm×392mm
(low base)
net weight 550kg (500kg)
