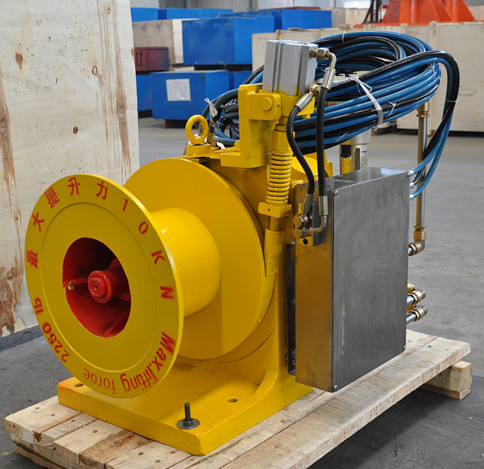

Air Winch, Pneumatic Winch, Brand Name : JULING

1.Application:Air winch is ideal equipment for transmiting or lifting heavy cargo in Petroleum drilling field, marine industry,mining and construction industry.
2.Standard Winch Features:
1). Radial piston air motor. Provide positive power with precise control.
2). Compact structure. Keep out dirt and dust. All parts are sealed and complete lubricated in oil and grease.
3). Reliable hand brake.
4). High sensitive control valve provides flexible control with variable speed.
5). Easy operation, high safety and reliability, easy maintenance, stable performance
6). Small size, light weight. (the casing is made of aluminum alloy).
To facilitate the operation of the machine, we developed remote electrical off-brake pneumatic winch, remote pneumatic off-brake pneumatic winch, which integrate the conventional brake hoisting system, make the operation more easy and safe.
3. JQH series air winch technical data
　 Model JQH-10×24
1 Rated air intake pressure (MPa) 0.8
2 Max. lifting force (KN) 10
3 Max. lifting speed (mmin) 24
4 Air motor Rated power (kW) 2.6
Number of cylinders 6
Cylinder diameter (mm) 65
Piston travel (mm) 50
5 Drum Diameter (mm) 200
Width (mm) 200
Rim diameter (mm) 380
Wire capacity (m) 60
6 Diameter of wire (mm) 11
7 Air pipe diameter (mm) 25
8 Dimension Length (mm) 690
Width (mm) 390
Height (mm) 570
9 Net weight (kg) 176
