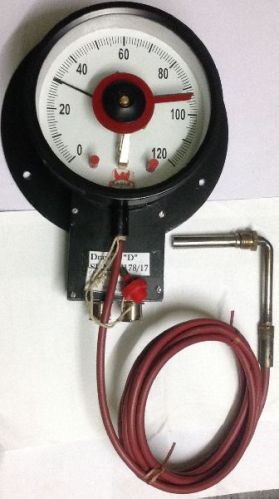

Contact SupplierAlarm & trip contact temperature gauge:
capillary length: 5 meter,with pvc armour.(ss-304 armour on request).
Case & mounting clamp: die cast aluminum, 210mm dia with 7 mm 3 nos. Hole at 120 deg.mounting clamp.
Junction box: at the bottom of the casing made of aluminium,with proper gasket.
A suitable terminal block has been provided inside the jb to facilitate connection for power supply cable, & cable gland for alarm & trip.
Stem & bulb : ss-316 (ss-304 & mild steel optional).
Relay : relay coil at 230 v ac.
Contact: contact rating 230 v ac. 3amp. (extendable up to 5 amp.
Dial size : 150 mm
pointer: external "0" adjustment.
Bourdon tube : ss-316.
Glass: toughened glass.
Movement: ss-304.
