All Aluminium Conductor

Listing ID #6590226

  • MOQ 20 Metric Ton
  • Supply Type Manufacturer, Supplier, Trader
Preferred Buyer From : All over the world

Aluminium Stranded Conductors (ASC) better known as All Aluminium Conductors (AAC) are manufactured from electrolytically refined (E.C.Grade) aluminium, containing a minimum of 99.5% aluminium by....
View More Details
Send Enquiry

Company Information

  • Member Since 10 Years
  • Nature of Business Exporter
  • GST No. 19AAACN9805H1Z9

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

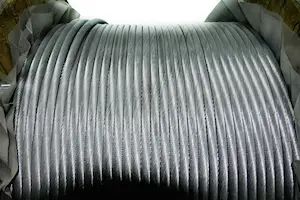

Aluminium Stranded Conductors (ASC) better known as All Aluminium Conductors (AAC) are manufactured from electrolytically refined (E.C.Grade) aluminium, containing a minimum of 99.5% aluminium by weight. The aluminium used has a minium conductivity of 61%. AAC conductors are used mainly in urban areas where the spacing between supports is small and thereby the supports are relatively closer to each other.



All Aluminum Conductors are made up of one or more strands of aluminum wire depending on the required current carrying capacity and used specially as bus conductors at sub-stations. AAC conductors are also used extensively in coastal areas because they have a very high degree of corrosion resistance.



Key Benefits

  • Conductivity of AAC conductor is high.
  • AAC conductor is corrosion resistant.



Standards

We manufacture AAC conductor as per following standards:

  • BS 215 Part 1
  • DIN 48201-5
  • IS 398 Part 1
  • IEC 207
  • ASTM B231 : 1981


AAC CONDUCTORS (IS : 398 Part 1 )

Nominal Alluminium Stranding & Wire Diameter Sectional Area Approx Overall Diameter Approx. Mass Calculated Maximum Resistance at 200 Deg C Approx Calculated Breaking Load
mm2 mm mm2 mm kg/km ohms/km KN
25 7/2.21 26.85 6.63 74 1.09600 4.52
50 7/3.10 52.83 9.30 145 0.55250 8.25
100 7/4.39 106.00 13.17 290 0.27520 15.96
150 19/3.18 150.90 15.90 415 0.19420 23.28
240 19/3.99 237.60 19.95 654 0.12350 35.74
300 19/4.65 322.70 23.25 888 0.09107 48.74

Company Details close-icon

Capitalizing on our huge industrial experience and resources, we, Nirmal Wires Pvt Ltd have emerged as the top-notch company for wiring solutions in the industry. Since our inception in 1981, we have continued to rise as a prominent name, setting standards as a role model for other companies in the market. We have our base in Kolkata (West Bengal) and have earned a reputation as the prime manufacturer, supplier, exporter, and trader of a huge range of wires and other allied products that include galvanized steel wires, aluminum conductors, hot rolled products, stick electrodes, MIG wires, mild steel wires, spring steel wires, cable armoring wires, high carbon steel wires, galvanized barbed wires, cold heading quality steel wires, prestressed concrete stand wires, indented prestressed concrete wires, high strength deformed steel bars, and many more.



Being a quality-conscious organization, we supply the best products available in the market. We believe in serving our customers with our diligence and best efforts, who have in turn laid their valuable trust and faith in us since our establishment.



We use top-quality materials and advanced techniques in our entire manufacturing process. At Nirmal Wires Pvt Ltd, there is the assurance of quality with the implementation of strict quality checks on various parameters throughout the processing and after finishing. We have employed about 350 – 400 highly trained and skilled personnel to undertake the burdens of running and supervising such complicated tasks of production.



We are based on a vast sprawling infrastructure for receiving orders in bulk and accomplishing them within the set timelines. Supplies are cautiously stored in the warehouse facility to avoid damage, misplacing, or other sorts of errors/defects. We also realize the value of timely delivery and ensure maximum customer gratification.

  • Nature of Business Manufacturer / Exporter / Supplier / Trader
  • Number of Employees 350 - 400
  • Year of Establishment 1981
