All Dielectric Self Supporting Aerial Cable

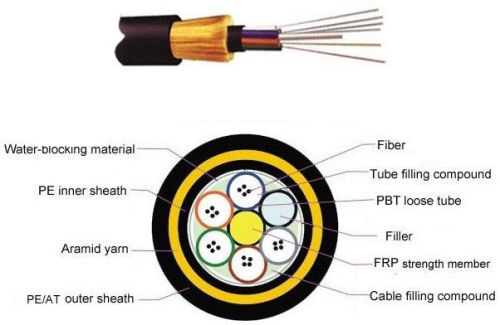

All Dielectric Self Supporting Aerial Cable is a stranded loose tube manufactured using high modulus plastics. Fibers (250μm) and water-resistant filling compounds are filled in the All Dielectric Self Supporting Aerial Cable. FRP (Fiber Reinforced Plastic) acts as a compact and circular cable core in which the non-metallic central strength members such as tubes (and fillers) are stranded. The cable core is then shielded with PE (polyethylene) inner sheath. PE or AT (anti-tracking) outer sheath is provided over the inner sheath of aramid yarns. Features

• ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1
• Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
• Can be installed without shutting off the power
• Large span lengths and the largest span is over 1000m Light weight and small diameter reducing the load caused by ice and wind and the load on to and backprops
• The design life span is 30 years
• Good performance of tensile strength and temperature.
• Storage/Operating Temperature : -20^oC to + 60^oC
