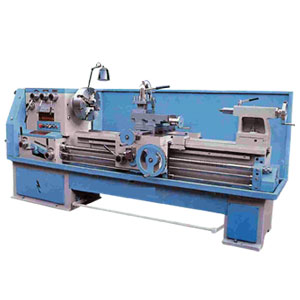

All Geared Head Lathe

One of the leading manufacturer, supplier and exporter of all geared head lathe machines we understand the customer values and their exposers. With the help of our experienced engineers, we are able to design and develop a wide range of All Gear Head Lathe Machine. Our Machine is best acclaimed for components like industry driving costs, stringently tried, quality guaranteed, and so on. Gears are made from alloy steel & are hardened & precision ground.

STANDARD ACCESSORIES

Bed

2V & 2 flat type made of close grained cast iron. Robust and heavily ribbed walls with wide openings to facilitate easy flow of chips. Guideways are hardened and precision ground stopping.

Feed Box

Universal feed box to culmetric Module inch & D.P. Threads.

Safety Devices

Emergency switch for instantaneous thermal overload relay for electrical system. Mechanical over load tripping for feeds. Shear key for end gears & shear pin lead interlock for simultaneous start of feeds & thread cutting wipers for guide ways.

Main Spindle

Made from alloy steel hardened & ground. Supported by precision taper roller bearings.

Head Stock

All geared type. Gears are made from alloy steel & are hardened & precision ground.

Tail Stock

Moves on “V’ & flat guide of the bed. Cross movements is incororated for turning of slight tapers.

Saddle

Provided with full length cross slide & taper wedge to adjust sliding clearance.

Special Accessories

• 4 jaw Independent Dog-Chuck with Back Plate
• 3 Jaw Self Centering Chuck with Back Plate
• Quick Change Tool Post
• Telescopic Taper Turning Attachment
• Electric magnetic Brake
• Splash Guard
• Rear Tool Post
• Rapid Traverse of Slide
• Machine Lamp
• Steady Rest
• Follow Rest
• Face Plate
• Tool Post Grinder
• Revolving Centre

Standard Equipement

• Electric Motor with Control Panel
• Headstock’s and Tailstock’s Dead Centre
• Thread Dial Indicator
• Quick Change Gear Box
• Square Tool Post
• Driving Plate
• Set of Spanners & Keys
• Instruction Mannual
