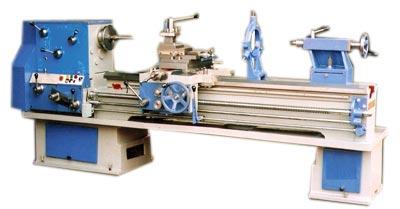

All geared lathe machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are proud to be listed among the reputed all geared lathe machine manufacturers, suppliers and exporters from batala, punjab. we offer premium quality All Geared Lathe Machines that are preferred by our clients over others, due to their high performance and robust body. attributes : robust structureanti-corrosive natureequipped with hard steel gearsmaximum torsional stiffness due to wide beddifferent models used to perform operations like : slot and keyway cuttingplanningdrillingdiesinkingrebatingrouting

View More Details

Send Enquiry

Product Details

Technical Specifications

Center Height	250mm	250mm	250mm
Width of Bed	325mm	325mm	325mm
Admit between Centers	1000mm	1500mm	2000mm
Spindle Bore	53mm	53mm	53mm
No. of Spindle Speeds	8	8	8
Range of Spindle	45-1000	45-1000	45-1000
Range of Threads	2-56 TPI 0.5-14 mm 0.125-3.5 Module	2-56 TPI 0.5-14 mm 0.125-3.5 Module	2-56 TPI 0.5-14 mm 0.125-3.5 Module
Main Drive Motor	3 H.P	5 H.P	5 H.P
