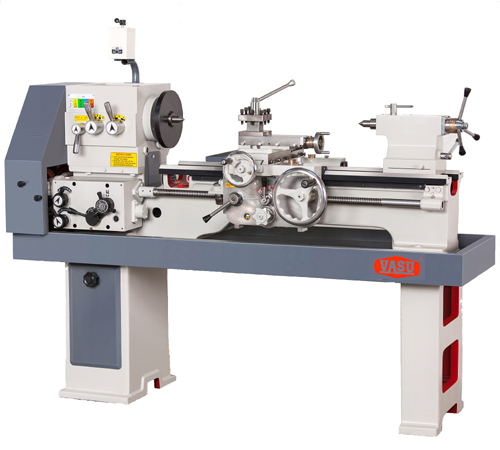

Ours is a prominent firm that is engaged in manufacturing, supplying and exporting All Gear Light Duty Lathe Machine. These machines are known for their seamless finish, low maintenance, longer service lives, corrosion resistance, abrasion resistance and easy mounting and installation. The above mentioned features of our offered All Gear Light Duty Lathe Machine are widely cherished by our patrons and thus we are one of the leading firm that is engaged in this domain.
Â
| Main Spindle | ||||||||
| 3 | Type of Spindle Nose | Threaded | ||||||
| 4 | Spindle bore | 38 mm | ||||||
| 5 | Spindle Morse Taper | MT-5 | ||||||
| 6 | Spindle Adapter Morse Taper | MT - 3 | ||||||
| 7 | Spindle Speeds Nos./RPM Range | 8 54, 90, 140, 224, RPM. 315, 500, 775, 1200. RPM | ||||||
| 8 | Spindle Mounting on | Taper Roller Bearings | ||||||
| TAIL STOCK SPINDLE | ||||||||
| 9 | Spindle Diameter | 38.1 mm | ||||||
| 10 | Spindle Travel | 120 mm | ||||||
| 11 | Spindle Morse Taper | MT-3 | ||||||
| LEADING SCREW | ||||||||
| 12 | Diameter / Threads | 25.4 mm / 4 TPI | ||||||
| THREADS | ||||||||
| 13 | Nos. of Threads / Metric | 17 / 0.5 mm To 15 mm Pitch | ||||||
| 14 | Range For Fully Norton Inch(Gearbox) | 40 / 2 to 60 TPI | ||||||
| DIMENSIONS | ||||||||
| 15 | Floor Space Occupied (mm) | 1500x850 | ||||||
| 16 | Aprox. Weight in kgs. | Nett-550 Gross-725 | ||||||
| 17 | Aprox. Case Dimensions(mm) | 1700 x 900 x 1350 | ||||||
| ELECTRICALS |
|---|
| Electric Motor of 1 H.P. / 0.75 k.w., 3 Phase, 50 Hz, 440 V., 1440 RPM with Reverse - Forward switch, V-Belt, Electrical Wirings and fittings. |
