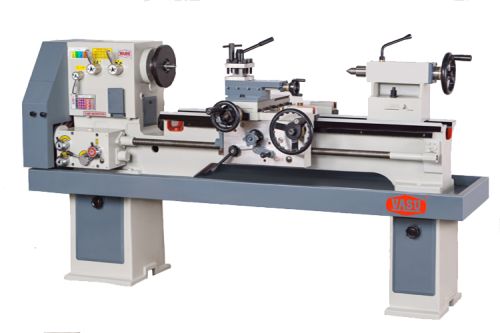

All Geared Medium Duty Lathe Machine

Listing ID #3896685

Get Latest Price

Swing Over Cross Slide250 mm
Width of Bed277 mm
Swing In Gap620 mm
Swing Over Bed423 mm
Centre Height over flat bed ways215 mm
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Product Details

ID	Particulars	AGM 1	AGM 2	AGM 3
1	Length of Bed	1370 mm (4'-6")	1600 mm (5'-3")	1830 mm (6')
2	Admit Between Centres	450 mm	725 mm	950 mm
Main Spindle
4	Type of Spindle Nose	Threaded	Threaded	Threaded
5	Spindle bore	38 mm	38 mm	38 mm
6	Spindle Morse Taper	MT-5	MT-5	MT-5
7	Spindle Adapter Morse Taper	MT - 3	MT - 3	MT - 3
8	Spindle Speeds Nos./RPM Range	8 54, 90, 140, 224, RPM. 315, 500, 775, 1200. RPM	8 54, 90, 140, 224, RPM 315, 500, 775, 1200. RPM	8 54, 90, 140, 224, RPM 315, 500, 775, 1200. RPM
9	Spindle Mounting on	Taper Roller Bearings	Taper Roller Bearings	Taper Roller Bearings
TAIL STOCK SPINDLE
10	Spindle Diameter	50.8 mm	50.8 mm	50.8 mm
11	Spindle Travel	145 mm	145 mm	145 mm
LEADING SCREW
12	Diameter / Threads	31.75 mm. / 4 TPI	31.75 mm / 4 TPI	31.75 mm / 4 TPI
THREADS
16	Nos. of Threads / Metric	17 / 0.5 mm To 15 mm Pitch	17 / 0.5 mm To 15 mm Pitch	17 / 0.5 mm To 15 mm Pitch
17	Range For Fully Norton Inch(Gearbox)	40 / 2 to 60 TPI	40 / 2 to 60 TPI	40 / 2 to 60 TPI

DIMENSIONS
18	Floor Space Occupied (mm)	1650x970	1950x970	2100x970
19	Aprox. Weight in kgs.	Nett-775 Gross-825	Nett-850 Gross-900	Nett-875 Gross-925
20	Aprox. Case Dimensions(mm)	2000 x 1000 x 1500	2200 x 1000 x 1500	2500 x 1000 x 1500

ELECTRICALS
Electric motor of 2 HP / 1.5 k.w., 3 Phase, 1440 RPM with Panel board wirings, Pushbutton switches or Reverse - Forward Switch, V-belts and fittings.

Company Details

ATUL Machine Tools is a Machine Tool manufacturing company based in Rajkot – focus products being Surface Grinding Machines, Cylindrical Grinding Machines, Conventional Lathe & SPMs.
Incorporated in 1989, ATUL Machine Tools has set-up a modern manufacturing/assembly/ testing facility to constantly work on bringing out better solutions in Grinding & Turning processes.
The company’s main office is situated in Rajkot city while the Company’s workshop is located in highly grown industrial zone Lodhika G.I.D.C. of Rajkot district which is India’s well known city for tool and machinery industry. The company workshop is spreaded out in 10000+ sq. ft. area. The workshop is well equipped with various precision mother machines and latest inspection and testing equipments & methods as per IS standards. The company is ready to undertake any challenge from design concepts to the manufacturing, erection and commissioning of any type of S. P. M. Machines.
“Our company is ISO 9001:2008 certified company in Design, Manufacturing, Supply, Sales and After Service of Cylindrical and Surface grinding machines.”
