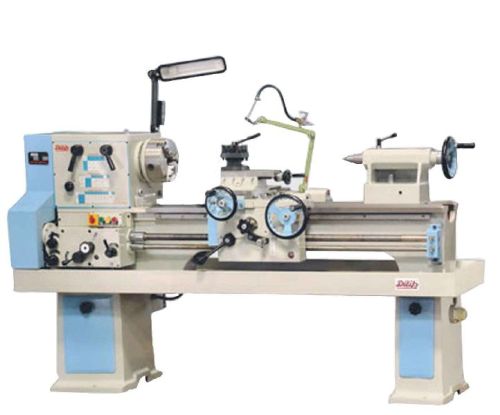

All Geared Pricision Lathe

Listing ID #3871223

Get Latest Price

Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

Download Catalogue Flame hardened Bed Norton Gear Box Chuck Back plate Spindle Sleeve Dead Centres Tool post Key Oil Can Set of Spanners & Allen keys Spare parts / Instruction....

View More Details

Send Enquiry

Product Details

Download Catalogue

Flame hardened Bed
Norton Gear Box
Chuck Back plate
Spindle Sleeve
Dead Centres
Tool post Key
Oil Can
Set of Spanners & Allen keys
Spare parts / Instruction Manual
Download Catalogue

Hardened & profile ground Gears & Spline shafts for long-life & noise-less operation.
Easy Speed selection & Gear changing.
Full Norton Gear box enabling to cut multiple threads.
Induction hardened A24 type Spindle with proven make Taper Roller Bearings.
Box type cross section ribbed 280 mm wide Bed providing max. torsional stiffness & rigidity.
Independent Feed shaft minimizing wear & tear of lead-screw.
Electromagnetic Brake with foot pedal (optional).
Readily available & completely interchangeable spare-parts.

Download Catalogue

True Chuck / Dog Chuck
Face Plate
Steady Rest
Follow Rest
Rear Tool post
Coolant pump with tank & adj. Nozzle
D1-4 Camlock Spindle in lieu of Std. Spindle
Chuck Plate, for (a) A24 Spindle
(b) D1-4 Camlock Spindle
Taper Turning Attachment
Quick Change Tool post
Key - way Milling Attachment
Splash Guard
Machine Lamp
Revolving Centre - MT 4
3 - Position Carriage Stop
Electromagnetic Brake with Foot Pedal
Turcite-B Coating for Guide ways

HEAD STOCK
Hole through Spindle	40 mm	40 mm	40 mm
Taper in Spindle	MT-5	MT-5	MT-5
Spindle Nose type	A24	A24	A24
Spindle Speed : Steps, Range; Std.	8, 50 to 1200 rpm	8, 50 to 1200 rpm	8, 50 to 1200 rpm
Optional	8, 70 to 1600 rpm	8, 70 to 1600 rpm	8, 70 to 1600 rpm
TAIL STOCK
Taper in Quill	MT-4	MT-4	MT-4
Quill Travel	150 mm	150 mm	150 mm
Quill Dia.	50 mm	50 mm	50 mm
SLIDE TRAVEL
Top Slide travel	115 mm	115 mm	115 mm
Cross Slide travel	205 mm	205 mm	205 mm
Tool shank Cross section	20x20 mm	20x20 mm	20x20 mm
FEED RANGE
Longitudinal feed per revolution	0.05 to 0.8 mm/rev.	0.05 to 0.8 mm/rev.	0.05 to 0.8 mm/rev.
Transverse feed per revolution	0.03 to 0.48 mm/rev.	0.03 to 0.48 mm/rev.	0.03 to 0.48 mm/rev.
THREADS : NO OF STEPS, RANGE
Metric	20, 0.5 to 7.5 mm	20, 0.5 to 7.5 mm	20, 0.5 to 7.5 mm
Inches	36, 4 to 60 TPI	36, 4 to 60 TPI	36, 4 to 60 TPI
LEAD SCREW
Diameter	32 mm	32 mm	32 mm
Pitch	4 TPI	4 TPI	4 TPI
ELECTRICALS
Main Motor	2 HP (1.5 KW)	2 HP (1.5 KW)	2 HP (1.5 KW)
Power Supply	415V, 3 ph, 50 cycles A/C.	415V, 3 ph, 50 cycles A/C.	415V, 3 ph, 50 cycles A/C.
WEIGHT & DIMENSIONS
Net Weight of Machine (App.)	695 Kgs.	775 Kgs.	895 Kgs.
Wooden Case Dim. (App.)	1675 x 900 x 1375 mm	2100 x 900 x 1375 mm	2250 x 900 x 1375 mm
Gross Weight (App.)	950 Kgs.	1075 Kgs.	1250 Kgs.
