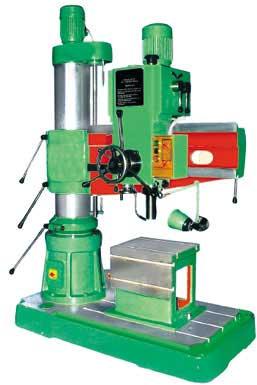

All Geared Radial Drill Machine

We are engaged in offering the clients with superior quality all geared radial drill machine that is acknowledged for its special features across the globe and have attracted the clients to place repeated orders for the same. Before being supplied to clients, our entire range is rigorously tested to assure their consistent quality standards. salient features :

• heavy duty
• hustle free working
• user friendly operation
• corrosion resistant

can easily drill hard materials such as :

• wood
• concrete
• plastics
• metals

technical specifications modelbag - 2bag – 3bag – 4drilling capacity38 mm50 mm65 mmspindle travel200 mm195 mm250 mmspindle tapermt-4mt-4mt-5no of spindle speed r.p.m8 (60-1760)9 (50-805)9 (50-805)range of power feed0.02-0.010.120.12column diameter 180 mm280 mm330 mmworking range max / min dist. Spindle center to col. Center950/4501325/6151700/700max / min dist. Spindle nose to base plate1000/2401080/4801200/500horz. Move. Of radial arm500 mm600 mm660 mmworking surface of table500 x 435500 x 435 mm500 x 480 mmworking surface of base plate870 x 660 mm1020 x 800 mm1400 x 850 mm generaldrilling head motor (hp/rpm)1.75 (1440-2800)03/01/4005/01/40elevator motor (hp/rpm)0.5/144002/01/4003/01/40base plate dimension (l x w)1300 x 8001680 x 9302050 x 990
