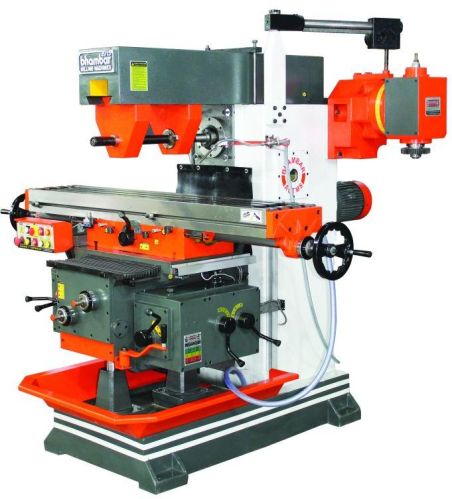

All Geared Universal Milling Machines, Brand Name : Bhambar

₹ 2.22 Lakh / piece

CertificationISI Certified
Brand NameBHAMBAR
Power6-9kw
UsageIndustrial
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 4 Years
Nature of Business Manufacturer
GST No. 03AANCB6130C1Z7

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

UsageIndustrial
CertificationISI Certified
Power6-9kw
Country of OriginIndia
Brand NameBHAMBAR
Total Carbohydrate1 Year
Number Of FlowerAutomatic

SALIENT FEATURES

Convenient & User Friendly Design.
Highly Rigid Casting Frame.
Superior Quality Casting with Chemical Compositions
Independent Motor Drives for Spindle & Feeds
Single Lever Control for Rapid & Feeds
Massive Range of Spindle speeds & XYZ Axis Feeds
XYZ Axis can be run Automatically as well as Manually
Fully Reliable Hardened Gears and EN Alloy Steel Shafts/Acme Screws
» All parts are interchangeable with Standard Designs
ISI/CE Marked Electrical.

STANDARD EQUIPMENTS:

Draw Bar, Electrical Control Panel with Switch Box & Motors, Machine Lamp, Bellow Guards, Base Splash Tray, Arbour with Hardened Bushe

OPTIONAL EQUIPMENTS

Vertical Attachment, Ram Type Head, Side Vertical Head, Duplex Head Attachment, Slotting Attachment, Rack Cutting, Universal Dividing Head as per order, Rotary Table as per order, Milling Machine Vice as per order, Electric Coolant Pump & whichever not mentioned in standard

Specifications

Model	UMG 700	UMG 850	UMG 1100	UMG 1200	UMG 1300

Work Table Size	1350300	1600x350	1900x400	2100X400	2300500
Swivel of Table	45°	*45°	*45°	FIX	FIX
T-Slot Nos. / Bolt Size	3/ M16	3/ M6	5/ M16	5/ M20	5/ M20
T-Slot Centre Distance	70	90	80	90	95
Distance From Spindle to Table max/min	400-0	500-00	550-50	600-50	650-50
X-Longitudinal Table Travel	700	850	1100	1200	1300
Y-Cross Table Travel	240	330	450	500	550
Z-Knee Vertical Gap	410	500	600	650	700
Table Loading Capacityi n (kgms.)	350	700	1200	1800	2500

Feeds & Rapids in X-Y-Z Axis

No. of Feeds	18	18	18	18	18
Range of Longitudinal Feed/min	10 10 500	10 10 500	10 10 500	10 10 500	10 10 500
Range of Cross Feed /min	10 10 500	10 10 500	10 10 500	10 10 500	10 10 500
Range of Vertical Feed /min	2510125	2510125	2510125	2510125	2510125
No. Of Rapid Traverse	1	1	1	1	1
Longitudinal Rapid Feeds / min	1500	1500	1500	1000	1000
Cross Rapid Feeds/ min	1500	1500	1500	1000	1000
Vertical Rapid Feeds/min	375	375	375	275	275

Electrical
Spindle Motor/ RPM’s	3HP/ 1440	5 HP/ 1440	7.5 HP/1440	10 HP/ 1440	10 HP/ 1440
XYZ Axis Feed Motor	2kw	2kw	3kw	Akw	Akw
Coolant Motor	0.1 HP	0.1 HP	0.1 HP	0.1 HP	0.1 HP

Floor and Packing Dimensions ( Approx ).

Overall Length	2000	2050	2500	2700	2800
Overall Width	1750	1950	2500	2600	2700
Overall Height	1800	1880	2400	2700	2800
Net Weight kgms.	2500	3500	4200	5500	7000
Gross Weight with Wooden Packing	3500	4600	5500	6800	8500
