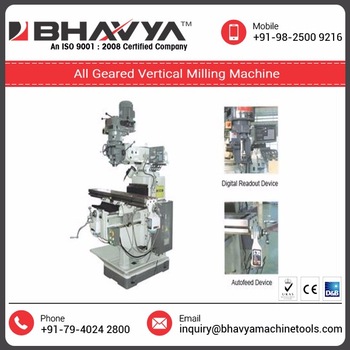

All Geared Vertical Milling Machine

All Geared Vertical Milling Machine

Listing ID #4556094

Get Latest Price
  • Weight5000
  • WarrantyN/A
  • After-Sales Service ProvidedEngineers available to service machinery overseas
  • Brand NameBhavya Machine Tools
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

Bhavya machine tools
SG Highway, Ahmedabad, Gujarat
View Number
  • Member Since 16 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Weight 5000
  • Warranty N/A
  • After-Sales Service Provided Engineers available to service machinery overseas
  • Brand Name Bhavya Machine Tools
  • Certification An ISO 9001 2008 Certified Company
  • Packaging Details Depend on Customer Requirement.
  • Power(W) 10 (H.P)
  • Place of Origin Gujarat, India
  • Supply Ability N/A
  • Model Number MAC 5VE

MODEL MAC 2VE MAC 3VE MAC 4VE MAC 5VE
TABLE
Working Surface 1300x300 1400x330 1600x350 1800 x 400
No. & Width of T Nut 3.16 3.22 T NUT 3.22 T NUT 3.22 T NUT
Centre Distance Between T Slots 70 80 85 90
Longitudinal Travel-X 700 800 1000 1200
Cross Travel-Y 215 260 340 380
Vertical Travel-Z 450 510 600 650
Min. Distance From Left Hand Table End to Spindle Center 250 300 350 400
SPINDLE
No. of Feeds 12 12 12 12
Speed Range 40 - 1200 40 - 1200 40 - 1200 40 - 1200
Spindle Nose ISO-40 ISO-40 ISO-40 ISO-50
Min,/ Max. Distance, Centre Milling Spindle/ Lower Face of Milling Spindle to Table Top Surface 40-450 60-510 60-600 60-650
Distance Spindle Centre to Column 320 350 370 400
Face Vertical Movement of Quill 75 95 95 100
Swivel of Milling Head On Either Side 45o 45o 45o 45o
FEEDS
No. of Feeds 18 18 18 18
Long. Feed/Min 23-420 23-420 23-420 23-420
Cross Feed/Min 23-420 23-420 23-420 23-420
Vert. Feed/Min 25628 25628 25628 25628
Rapid long & Cross / Min 1050 1050 1050 1050
Rapid Vertical Min 175 175 175 175
POWER
Main Motor (H.P) 3 5 7.5 10
Feed Motor (H.P) 2 2 3 3
Coolant Motor (H.P) 0.1 0.1 0.1 0.1
DIMENSIONS
Length x Width x Height 188 x 157 x 208 213 x 175 x 234 246 x 188 x 246 260 x 200 x 260
Net Weight K.gs. 2200 3200 3700 4500
Gross Weight 2600 3700 4300 5000
