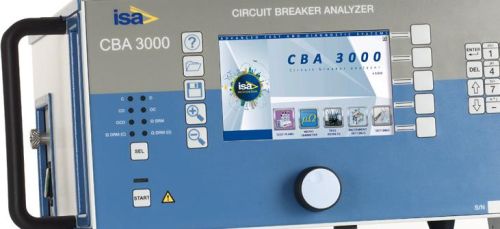

ALL IN ONE CIRCUIT BREAKER ANALYZER

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The ultimate all-in-one circuit breaker analyzer: safer, faster and more accurate than ever. It allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact....

View More Details

Send Enquiry

Company Information

Isa Advance Instrument (i) Pvt. Ltd.

Sector 2, Noida, Uttar Pradesh

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The ultimate all-in-one circuit breaker analyzer: safer, faster and more accurate than ever. It allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact resistance measurements, Both Sides Grounded (BSG) tests, Undervoltage condition test and more. All these functions are integrated in a single lightweight test case without the need of connecting additional external modules.

Faster: one single connection set up to perform automatically all possible Circuit Breaker tests
Safer: Both Side Grounded feature without any additional external boxes/modules
Three/Six/Nine static and dynamic contact resistance measurement – 200A DC output each
Three phase first trip measurement
16 or 24 fully user configurable Main/PIR and auxiliary input contacts
2, 4 or 6 Open / Close coil commands
3 analog linear/rotary transducers and 3 digital transducers inputs for travel/ speed analysis
8 analog input measurements: battery voltage, motor current, pressure transducers and other measurements
Minimum voltage trip coil test, fully automatic
On-screen control and test results evaluation
TDMS software suite for analysis, archiving and test report creation
Library of standard test plans available with the test sets
