Our Alloy Pipes are fabricated from qualitative raw material procured from reliable vendors of the market. Available in a wide range of technical specifications, our Alloy Pipes are highly acknowledged in Indian as well as overseas market. Moreover, Alloy Pipes have various attributes such as sturdy construction, excellent finish, high strength, precise dimensions, corrosion resistance, etc.
Key features :
| Items | Model | Retort Length | Material Quality | Capacity |
|---|---|---|---|---|
| Alloy Retort CCM | FMGL-00-I | 45-75 kwh | ||
| CCM Mould Dia | Φ200-400 mm | 1800-4000mm | 30COMO | |
| Alloy Retort CCM | FMGL-00-II | 45-75 kwh | ||
| CCM Mould | Φ400-550mm | 1800-4000mm | 30COMO | |
| Alloy Retort CCM | FMGL-00-III | 45-75 kwh | ||
| CCM Mould | Φ550-800 mm | 1800-10000mm | 30COMO | |
| Alloy Retort CCM | FMGL-00-IIII | 45-75 kwh | ||
| CCM Mould | Φ800-1500 mm | 1800-10000mm | 30COMO | |
| Power Control Panel | HM-HT-D | |||
| Heat Treatment | 12.5 meter Pit furnace | |||
| Production Capacity | 80-100 pieces/8 hours shift | |||

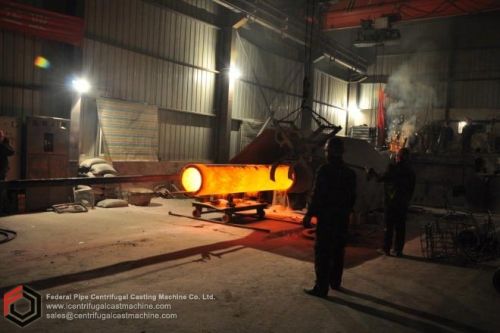

Alloy Retort Horizontal Centrifugal Casting Machine and Mould Specifications
Application : The Alloy Retort is used for Production of Metal Magnesium or Metal Calcium
| Dia (inch) | Outer Dia(mm) | Wall Thickness (mm) | Length(mm) | Weight(kg) |
|---|---|---|---|---|
| Φ3 | 86±1.0 | 4.3-0.7 | 3000±10 | 24.6 |
| Φ4 | 111±1.0 | 4.4-0.7 | 3000±10 | 34.4 |
| Φ5 | 137±1.5 | 4.8-1.0 | 3000±10 | 41.9 |
| Φ6 | 162±1.5 | 4.8-1.0 | 3000±10 | 51.2 |
| Φ8 | 214±1.5 | 5.8-1.0 | 3000±10 | 81.9 |
| Φ10 | 268±1.8 | 6.4-1.2 | 3000±10 | 113.6 |
| Φ12 | 318±0.18 | 7.0-1.2 | 3000±10 | 148.0 |
