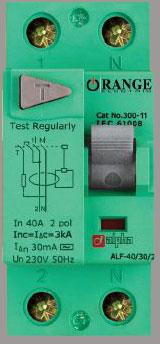

We are one of the reliable sources for obtaining world class Low Voltage Switchgear Alpha. Manufactured using innovative techniques, this Low Voltage Switchgear Alpha available with us provide isolation switching and earth leakage protection of electrical circuits. Further, our Low Voltage Switchgear Alpha is also responsible for indirect protection of the operator's body against the dangerous effects of electric current and provides protection against Hre caused by electrical circuit failures. Made available in varied technical and mechanical specifications, this Low Voltage Switchgear Alpha is very affordable.
» Technical Data
| Rated braking capacity (|nc=Ic) | 6KA |
| Rated voltage | 230/400V ~: 50/60HZ |
| Rated current (In) | 40 A |
| Rated residual operating current (In) | 30mA |
| Rated residual making & breaking capacity (Im) | 500A |
| Rated making & breaking capacity 2 (Im) | 500A |
| Degree of protection | Incorporated switch IP40 |
| Frame Size | 45 mm |
| socket size | 80 mm |
| Device width | 35mm (2-pole) 70mm (4-Pole) |
| Bus bar thickness | 0.8 - 2mm |
| Terminal capacity | 1 - 35mm2 |
| Installation | Ouick fastening with 2 lock-in positions on rail EN50022 |
| Terminal protection | Finger & hand touch safe VBG 4, OVE-EN6 |
| Cat No. | Description | No of poles | Rated Voltage (v) | Rated fault Current (mA) | Rated Banking Capacity | Terminal Capacity |
|---|---|---|---|---|---|---|
| XRA-240N | 2 Pole 40 A 30mA RCD | 2 | 230 V | 30 mA | 3000 A - 6000 A | Cable up to 35 mm2 |
| XRA-440Y | 4 Pole 40 A 30mA RCD | 4 | 400 V | 30 mA | 3000 A - 6000 A | Cable up to 35 mm2 |
