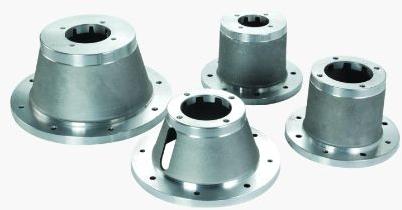

Coated Aluminium Bell Housing, Pattern : Plain

₹ 498 - ₹ 4,630 / Units

MaterialAluminium
PatternPlain
FinishingCoated
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

Member Since 17 Years
Nature of Business Manufacturer
GST No. 24AACFJ2116Q1ZD

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerAluminium Housings
MaterialAluminium
PatternPlain
ConditionNew
FinishingCoated
ResistivityRust Resistant

Owing to our expertise in this domain, we are offering our clients a supreme quality Aluminum Bell Housing. Our bell housings are used in the industry like electrical, plumbing & building construction. These bell housings are acclaimed in the market for its perfect finish & optimum quality. We manufacture these bell housings under the vigilance of highly skilled professionals by using leading techniques.

By using bell housing motor and pump shaft are aligned to each other optimally.
Material aluminium low weight with sufficient strength.
Horizontal assembly possible with foot cum flang motor.
Bell housing material high graded aluminium pressure die cast.
Jacktech GJM series aluminium bell housing are precisely machined to rdeuce misalignment of couple shaft.
Aluminium bell housing also reduces the noise generation considerably.
Aluminium bell housing size available as per factory stock.

Graph Image

Download Detail File : Click Here

Specifications

Part No.	Frame Size	Motor H.P.	A	B H8	C	D	E H8	F	G	H
13082680	80	0.75,1	80	82.55	106.2	140	130	165	M10	M10
130826100	80, 90 S/L	0.75,1,1.5,2	100	82.55	106.2	140	130	165	M10	M10
130826130	80, 90 S/L	0.75,1,1.5,2	130	82.55	106.2	140	130	165	M10	M10
13060130	80, 90 S/L	0.75,1,1.5,2	130	60	80	140	130	165	θ9	M10
180826110	100L / 112M	3,5	110	82.55	106.2	180	180	215	M10	M12
180826124	100L / 112M	3,5	124	82.55	106.2	180	180	215	M10	M12
18060124	100L / 112M	3,5	124	60	80	180	180	215	θ9	M12
230826145	132S / 132M	7.5,10	145	82.55	106.2	230	230	265	M10	M12
2301016145	132S / 132M	7.5,10	145	101.6	145.9	230	230	265	M12	M12
23060145	132S / 132M	7.5,10	145	60	80	230	230	265	θ9	M12
250127188/204	160M/L, 180M/L	12.5,15,20,25,30	188/204	127	180.8	250	250	300	M16	M16
2501016188/204	160M/L, 180M/L	12.5,15,20,25,30	188/204	101.6	145.9	250	250	300	M12	M16
250826188/204	160M/L, 180M/L	12.5,15,20,25,30	188/204	82.55	106.2	250	250	300	M10	M16
25060188/204	160M/L, 180M/L	12.5,15,20,25,30	188/204	60	80	250	250	300	θ9	M16

Note:
*This bell housing dimension as per jacktech gear coupling & jacktech standard.
*Bell housing kits with Bore key ways coupling & all mounting bolt are available.
