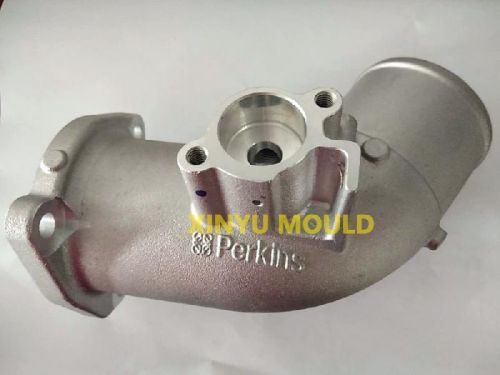

Aluminium Casting Pipe Fitting

Description- Before starting the pipe fitting die design ,XINYU MOULD fully studied the structural characteristics of tube joint parts/bends/pipe fittings, the die casting die was designed based on the analysis of forming process, combined with the model of die casting equipment and technical parameters. The parting surface of die is selected at the longitudinal maximum cross section. The side hole of die casting needs too long side core pulling distance, the bidirectional core pulling structure was selected, and the ring gate is used for the gating system, which avoids the metal liquid positive impact core. The filling cavity is more stable. The ejection mechanism was arranged on the ring gate and overflow blocks to improve the quality of the external surface of the die castings Our company Xinyu Mould specializes in manufacture of castings for Pipe. These Aluminium castings are manufactured with accuracy and finishes that avoids need for machining. The castings have proper radii at all places to avoid any effect during transmission of power. The castings are manufactured with due precautions to make them very sound to avoid sparking and pitting due to porosity/internal defects. Specification-  Product name: Aluminum casting pipe Die Casting Method: Precision Die Casting Certification: CE, ISO 9001:2008, TS16949 Casting Blank Size
