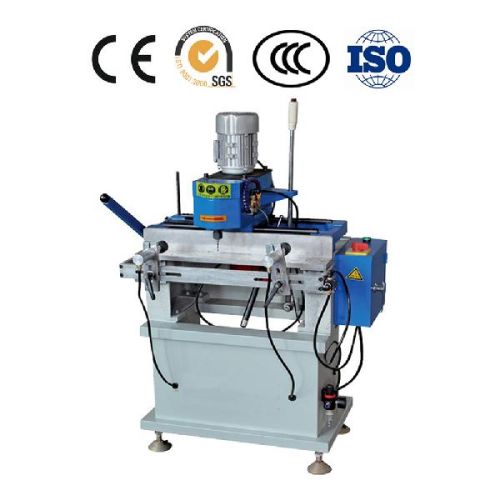

Aluminium Copy Router Machine For Lock Hole Drilling Milling

Main features
1. It is equipped with a single head routing motor that can cut holes or a variety of shapes in aluminum or pvc material
2. It can copy existing holes or shapes from a template
3. It is controlled by two handles which lead the cutting blades at any direction with ease. The machine is built on a rigid heavy gauge steel frame for better stability
technical parameters
main motor power 0.75kw
working voltage 380v50hz
operation air pressure 0.5-0.8mpa
processing strightness ±0.1mm
milling cutter diameter ø5,ø8
copy routing range 290*100mm
milling surface roughness ra12.5um
machine dimension 870x700x1500mm
weight 230kgs
