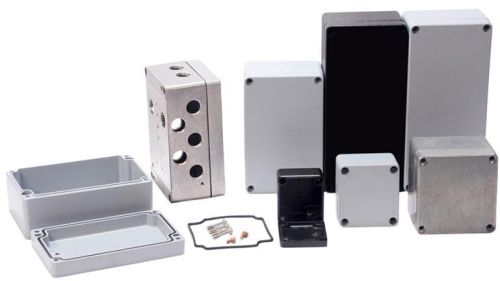

Aluminium Die Cast Enclosures

Aluminium Die Cast Enclosures

Listing ID #1077246

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

We bring forth precision-engineered Aluminium Die Cast Enclosures for industrial applications. Our Aluminium Die Cast Enclosures are made up of pristine grade aluminum as per European Standard - EN....
View More Details
Send Enquiry

Company Information

Knapp Engineering verified-icon
Dahisar, Mumbai, Maharashtra
View Number
  • Member Since 10 Years
  • Nature of Business Retailer
  • Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

We bring forth precision-engineered Aluminium Die Cast Enclosures for industrial applications. Our Aluminium Die Cast Enclosures are made up of pristine grade aluminum as per European Standard - EN 60529 (IEC 529). These enclosures are specifically designed to house DIN-rail mounted terminal block and various types of sensors. They maintain the safety and operation of electrical equipment in destructive working condition. These enclosures are quality approved by the authorities after thorough quality tests. Aluminium Die Cast Enclosures are available in standard as well as customized specifications.


Technical Features

Industry Standard EN 60529 (IEC 529)
Material (as per DIN 1725) AlSi12 (Fe)
Ingress Protection Rating IP68 as per IEC 60529
Temperature Range
Neoprene Gasket -40o C to +130o C
Silicon gasket -60o C to +200oC
Impact resistance >7Nm as per EN50014

Aluminium Die Cast Enclosure Sizes

Part No. Dimensions Material Colour Neoprene Gasket Silicon Gasket Din Rails
AC 50.45.30 50 X 45 X 30 mm AlSi12(Fe) Any RAL Shade Yes Yes No
AC 58.64.34 58 X 64 X 34 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 75.80.57 75 X 80 X 57 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 125.80.57 125 X 80 X 57 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 175.80.57 175 X 80 X 57 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 250.80.57 250 X 80 X 57 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 100.100.81 100 X 100 X 81 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 120.122.81 120 X 122 X 81 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 120.122.91 120 X 122 X 91 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes
AC 140.140.91 140 X 140 X 91 mm AlSi12(Fe) Any RAL Shade Yes Yes Yes



Additional Information

  • Packaging Details As per Standard International packaging
  • Delivery Time As per schedule

Company Details close-icon

Knapp Engineering was formed in 1998, where it focused on Precision customized components production.
We are ISO 9001:2000 company dedicated to the manufacturing of Precision Machining Components, Pressure Die Casting Parts , Sheet Metal parts & Gears according to customer’s specifications. Our quality standards, superior customer services and history of engineering excellence over decades makes us the most valuable organization among our customers.
We specialize in developing technological solutions ensuring continual improvements to provide quality & cost effective products.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees 20 - 50
  • Year of Establishment 2009
