Pneumatic Aluminium Foil Tray Making Machine

We offer Aluminium Foil Tray Making Machine.
Aluminium foil tray making machine LK-T45T63T80T110
Welcome to LIKEE , We specialized fully automatic production solution on the aluminum foil finished products!
-aluminium foil container machine
-aluminium foil container mould
-aluminium foil container OEM service
LK-T63 Configuration:
Decoiler
Vertical Press Machine
Automatic Stacker
Electronic Control Panel And Pneumatic Control Units
Fan Aspirator
Scrap Press

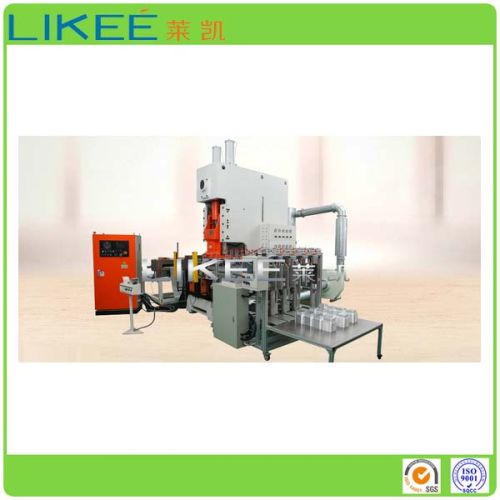

The T63 machine is designed and developed specially for the aluminum food containers, dishes and trays production. From the coiler, feeding to punching, those aluminum foil containers can be obtained finally.
The main body of T63 machine is a "C"-frame 63 press. Both in easy mould replacement and surface production, the bedplate of forming machine equipped two movable plate. The press configured with a servo motor, to make sure the high precision control of feeding step and speed.
The height of the feeding system is automatically adjustable to match the strip height of the tool currently in use on the press. There are 10 electronic cams (solenoid valves) controlled by a PLC and 10 fixed air connections with pressure regulators, providing easy tool set-up.
The functional usage of multiple cavity moulds can be achieved, by large number of air outlets laid on press. The T63 press is equipped with 5 air compressors. The pneumatic control panel is more easy to operate.
The press fits various kinds of moulds for wrinkle- wall, smooth-wall, pet, airline and folded containers production.
