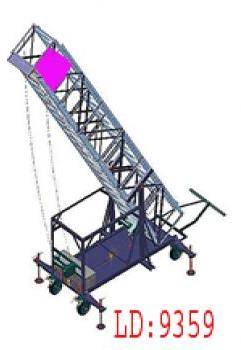

Aluminium Tiltable Tower

Model No :- 9359

Pankaj Quality Products company

ALUMINIUM Tiltable Tower Extendable Telescopic, Square Type Ladder made out of SPECIAL Extruded, Tested Quality Hindalco make ALUMINIUM Section of size . 66mm x 31mm x 3mm thick approx. With steps made of aluminium fluited pipes of 25mm (1") dia approx. . At a distance of 300mm (12") . Best rope pulleys and winch arrangement with suitable size steel rope for extending & closing the extended section of ladder to any required height fabricated . Best m.s.channel frames duly covered with 16 swg m.s.sheet for carrying materials and four m.s. forged solid rubber casted special wheels with double ball bearings of suitable dia complete with tow bar. . The platform of size 2x2 on the top guarded from three sides will be provided for safe working. . Further the ladder may be provided with mechanical system to tilt the complete ladder on rest and again lift the same for working having addl. . Winch set complete with required m.s.pulleys and steel wire rope to enable to reduce extra manpower to handle the ladder. . In addition to make the ladder more sturdy & safe 4 nos. . Adjustable jacks at four ends of the m.s.frame and m.s.channel base covered with m.s.sheet and m.s.sheet fabricated tool box of suitable size may be provided.

The width of the Outer Ladder is not less than 300mm.

AVAILABLE IN ALL SIZE FROM 15ft TO 65ft
