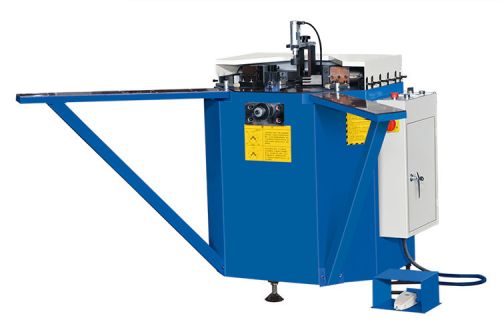

Aluminium Window Frame Making Machine For Window Door Fabrication

Main features
1. It is used for 90° aluminum corner crimping.
2. Special crimping technology keeps synchronous crimping
3. The height of every cutter can be adjusted and any two cutters can be combined freely to fit different profiles.
4. It can also process thermal-break aluminum profile.
Technical parameters
main motor power 1.1kw
working voltage ac380v 50hz
motor rotational speed 2840rmin
operation air pressure 0.5-0.8mpa
air consumption 20lmin
rating oil pressure 15mpa
capacity of oil box 20l
model of the oil pump 2.5mcy
corner combining pressure 85kn
connection seam error ≤0.15mm
corner combining casing movement journey 85mm
profile processing height 0~120mm
profile width 90mm
machine dimension 1000x1200x1200mm
weight 350kgs
