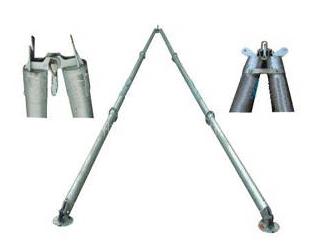

Contact SupplierAluminum Alloy A-shape Tubular pole Aluminum alloy A-shape tubular pole with manual winch for small pole erection Aluminum alloy A-shape tubular pole with manual winch for small pole erection is used for small pole erection in line construction. Notes 1.The maximum output force of the manual winch is 5KN. 2.Use high strength aluminum alloy tube as main materials, steel parts are galvanized. 3.Fixed style head part mounted with tri-pullsy. 4.The safety factor is 2.5 5.Recommend using 7mm steel wire rope, the workable length is 9 times the length of the pole. 6.Recommend using iron hoisting block. Technical Data Product No. Model Length(m) Cross Section (mm) Rated Load(KN) Safe Coefficient(K) Weight (kgm) 10366 C6-100 6 100 18 2.5 10 10367 C7-100 7 13 10368 C8-100 8 10 10369 C6-120 6 120 30 2.5 15 10370 C7-120 7 26 10371 C8-120 8 21 10372 C9-120 9 17 10373 C8-150 8 150 31 2.5 20 10374 C9-150 9 28 10375 C10-150 10 24 10376 C11-150 11 20 10377 C12-150 12 16 10378 C13-150 13 13
