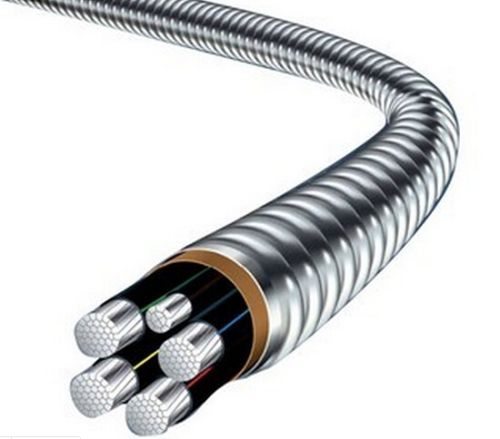

Aluminum Alloy Self-locking Aluminium Armored Power Cables

We are offering aluminum alloy self-locking aluminum armored power cables. Product description
aluminum alloy armored power cables: applicable to 600v~35kv voltage class; applicable to dry or moist places below 90º c; can be installed indoors or outdoors, vertically or laid with brackets or along the walls. The minimum bending radius is 7 times of the outer diameter, which can be bent 360 degrees; applicable to the places of civil, commercial, industrial, large venues, entertainment venues, mine, subway, and all levels of dangerous areas, etc.
product properties: the conductors adopt 8000 series conductors introduced from company, with high creep resistance, high flexibility, high elongate, high tensile strength, connected safely and stably.
application requirements: can be laid in indoors, outdoors, pipes, wire grooves, cable trenches, etc. Can be installed in the dry or moist places. Can be buried in the loose soil or cement.
voltage class: 0.61kv, 3.66kv, 610kv, 8.715kv, 1220kv, 1830kv, 2135kv, 2635kv
attn: according to users' requirements, the company can produce lszh, flame-retardant and fire-resistant, high temperature-resistant and low temperature-resistant cables. Flame- retardant and fire-resistant cables can reach flame-retardant class ia, fire-resistant class i, complying with gbt19666-2005. Flame-retardant cables add "zr" before the original model. Fire-resistant cables add "nh" before the original model. Lszh, flame-resistant and fire-resistant cables add "wdzn" before the original model.
Za-ac90(yjhl8) 0.61kv core 3,3+1,3+2,4,4+1 nominal cross 10-400mmsq
za-ac90(yjhl8) 8.715kv core 3 nominal cross 25-500mmsq
za-ac90(yjhl8) 2635kv core 3 nominal cross 50-500mmsq
