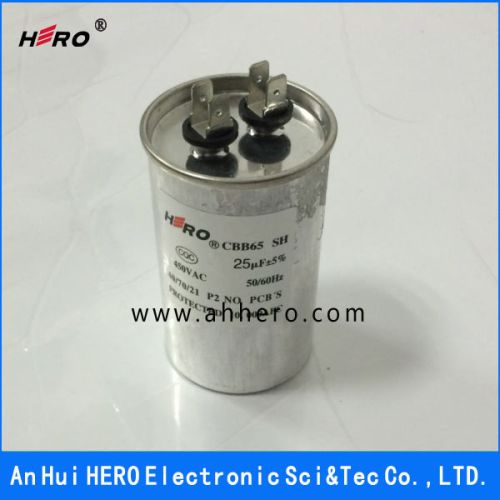

Aluminum Case Film Capacitor

We are offering aluminum case cbb65 film capacitor for air conditioner.
Ac capacitor apply to 5060hz a.c. single-phase motor for starting and running, esp.
nominal capacitance(uf):
3,4,5,7.5,10,12.5,15,17,20,22.5,25,30,35,40, 45,50,55,60,70,80,100, 25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5,100,uf,mfd,microfarad.
product type
ac motor capacitor
capacitance range
2uf~120uf
capacitance deviation
±5% or according to customers’ requests.
Rated voltage
250vac,370vac,400vac,450vac,500vac,550vac,600vac
rated frequency
5060hz
operating temperature
-40°c~+85°c
class of safety protection
p1, p2
testing voltage
t-t:2.0un60s
insulation resistance
>=3000s
tangent of loss angle of a capacitor
tanσ≤0.002 (100hz)
life expectancy
class a,class b, class c
size
according to chart or users require
capacitor cbb66cbb65cbb60cbb61 ac metallized polypropylene film capacitor
feature:
the product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor, etc.
Specification:
working temperature range climate types: 407021
rated voltage range :110vac,250vac, 300vac, 370vac, 440vac ,450vac,480vac,500vac,550vac,600vac,630vac
rated capacitance range 0.7-120uf
dissipation factor tan ≤ 0.002 (50hz)
rated tolerance of capacitance 5% 10%
testing voltage between leading-out ends: 1.75ur 10s no break down
insulation resistance between leading-out ends: 3000
