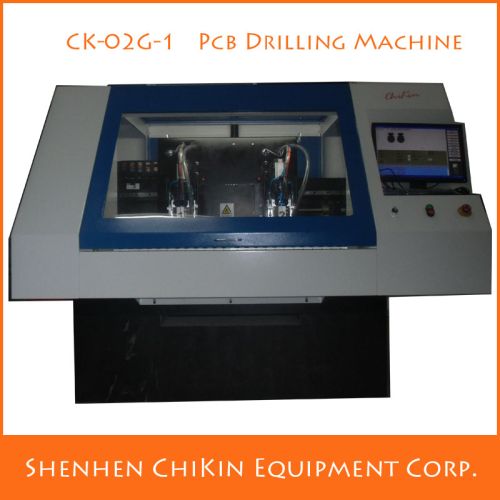

Aluminum Copper 2 Axis Granite Marble CNC PCB Drilling Machine China

₹ 15.39 Lakh / 49000 49000 Set

MOQ1 Set(s)
ConditionNew
UsageAll kinds of PCB and aluminum plate drilling and routing
Number Of FlowerPCB Drilling machine
MertialGranite Marble
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

ConditionNew
Number Of FlowerPCB Drilling machine
UsageAll kinds of PCB and aluminum plate drilling and routing
MertialGranite Marble
Weight2400KG
Spindle speed60krpm

We offer Aluminum Copper 2 Axis Granite Marble Cnc Pcb Drilling Machine China.
Spindle number, 2
spindle model, CK-02G-1
spindle speed, 160krpm
NC system, CHIKIN CNC
Drive system, Servo
spindle type, water-cooled
operating interface, Chinese interface
Positioning accuracy, ± 0.01mm
Molding Precision, ±0.01mm
Dilling diameter, 0.3-6.0mm
Milling diameter, 0.6-3.175mm
Size of the work, 560*680mm
Size of the machine, 2100*1850*1700mm
Air Supply, 6-8 bar
Tool magazine capacity, 23 PCS
Cuttingknife datection, Have Opional
working power, 220V 50Hz
XYZ Rail, Germany Star
X.Y.Z ballscrew, Germany Star
X Y axis displacement speed, 30mmin
Z axis displacement speed, 25mmin

Additional Information

Payment Terms L/C, T/TWestern Union
Port of DispatchYANTIAN/ SHEKOU/ CHIWAN PORT
Packaging DetailsStandard Solid wooden cases Or according to customers' requirements
Delivery Time15-30 Days after 30% deposit
