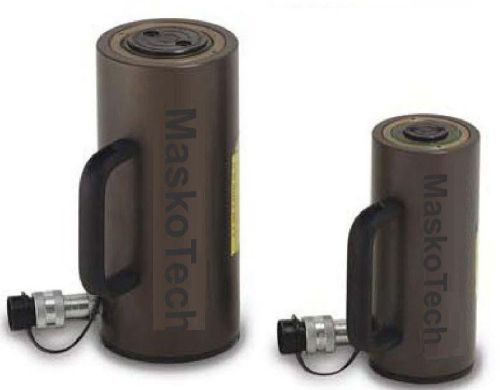

Aluminum Cylinder Jacks

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Aluminum Cylinder Jacks (MT-RCAS Series) are general purpose Spring Return Jacks. We have high-tech machinery for cutting metal and shaping it into Aluminum Cylinder Jacks. Buyers can purchase the....

View More Details

Send Enquiry

Company Information

Masko Tech Engineers

Bhaktinagar, Rajkot, Gujarat

View Number

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1968

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Aluminum Cylinder Jacks (MT-RCAS Series) are general purpose Spring Return Jacks. We have high-tech machinery for cutting metal and shaping it into Aluminum Cylinder Jacks. Buyers can purchase the Spring Return Jacks in bulk from us.

Single – Acting, Aluminum Cylinders

Lightweight, aluminum design for maximum portability.
7075-T6 aluminum alloy components for maximum strength and minimum weight.
Steel Baseplate and saddle for protection against load-induced damage.l
Anodizing treatment plunger, surfaces and inner of barrel resists damage and extends cylinder life.
Maximum sized springs speed piston return and increase spring life.
Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-load.
Stop ring for piston blow-out protection.
SQB-3/8 UF coupler and dust cap are included on all models.

Handle Type

(S) : Standard equipped
(O) : Option
Weldable
Eyebolt
Removable strap handle
Thread

Aluminum Cylinders

Steel Base Plate Mounting Holes

Cylinder model capacity	Bolt circle	Thread	Thread Depth
(tons)	U (mm)	V (mm)	Z (mm)
RCAS-20	70	M6	12
RCAS-30	80	M6	12
RCAS-50	110	M6	12
RCAS-100	160	M6	12
RCAS-150	200	M6	12

Optional Bolt Tilt Saddle Dimensions (mm)

Cylinder Model/cap. (tons)	Model Number	Saddle Diameter	Saddle Protrusion from base
RCAS - 50	Cat Rcas – 50	50	24
RCAS - 100	Cat Rcas-100	91	31
RCAS - 150	Cat Rcas-150	118	35

Technical Specifications

Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended height	Outside diam.	Cylinder bore diam.	Plunger diam.	Base to adv. Port	Saddle diam.	Saddle protrucsion from pingr.	Weight
Ton (kn)	(mm)	(Cm2)	(Cm3)	A (mm)	B (mm)	D (mm)	E (mm)	F (mm)	H (mm)	J (mm)	K (mm)	(Kg)
20 (218)	50	31.2	156	174	224	85	63	50	27	40	3	3.6
	100	31.2	312	224	324	85	63	50	27	40	3	4.1
	150	31.2	468	274	424	85	63	50	27	40	3	4.6
30 (309)	50	44.2	221	181	231	100	75	60	33	40	3	4.5
	100	44.2	442	231	331	100	75	60	33	40	3	5.2
	150	44.2	663	281	431	100	75	60	33	40	3	5.9
50 (496)	50	70.9	354	186	236	130	95	80	30	50	3	8.5
	100	70.9	709	236	336	130	95	80	30	50	3	9.8
	150	70.9	1063	286	436	130	95	80	30	50	3	11.1
100 (1002)	100	143.1	1431	271	371	188	135	110	46	94	3	19.6
	150	143.1	2147	321	471	188	135	110	46	94	3	21.9
	200	143.1	2863	371	571	188	135	110	46	94	3	24.2
150 (1589)	150	227	3405	343	493	230	170	140	51	113	3	33.3
