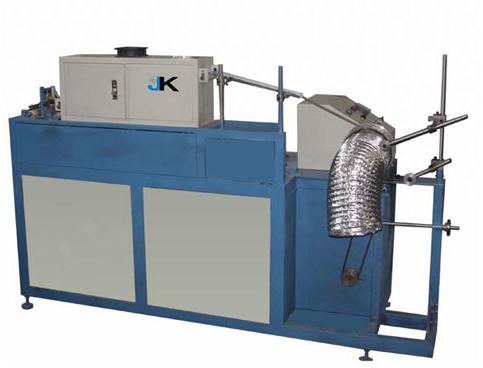

Contact SupplierWe are offering aluminum flexible duct forming machine. Aluminum tube is widely used in the kitchen, bathroom, air condition venting and hvac system. The stainless steel wire inside can hold the flexible tube in shape and make the tube flexible.
The new designed flexible duct forming machine has a tight form and tiny oven. Easier for transport. And the glue drop system can save glue in big amount.
Features
1 tight & smart
2 special motor driving glue system
3 economic type
technical data
model aft2
tube diameter 60~300mm(2"~12")
aluminum foil thickness 0.05~0.15mm
stainless steel wire dia. 0.08~0.18mm
raw material single or double layer aluminum composite
strip width 45~60mm
strip speed up to 5mmin
main power 1.5kw
oven heating power 300w
dimension 1700*650*800mm
weight 250kg
