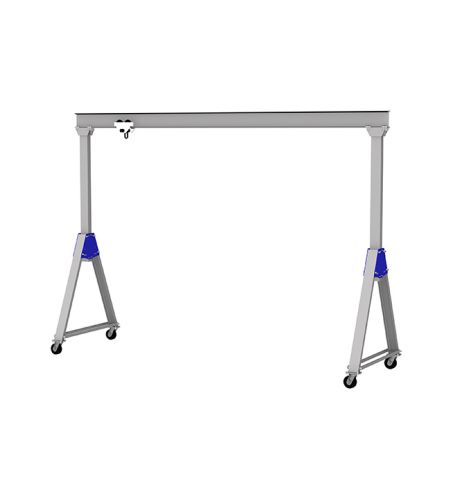

Aluminum Gantry Crane

Made in the U.S.A.
Gorbel 10-year Crane Warranty
Bolted beam to upright connection ensures safety
Molded phenolic casters are standard and provide for easy movement
Square tubing uprights, knee braces, and channel base provide for stable lifting and movement
All Gorbel Gantry Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
All Gorbel Gantry Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Gantry and Overhead Cranes.
All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
All Gorbel Gantry Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
