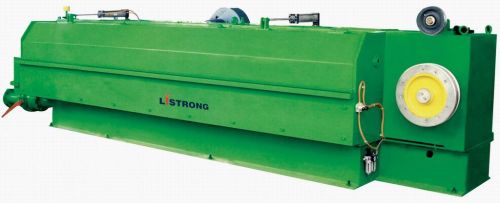

Aluminum Rod

We are offering aluminum rod
1、general rod：copper wire or ec-al aluminum wire，alloy-al.
2、machine type：drawing area air cylinder drawing door，drawing capstan in-line configuration，drawing oil up spray，each capstan in a shaft
3、inlet rod diameter：less 9.5mm for aluminum rod
4、outlet wire diameter：ec-al aluminum φ4.7~2.55mm/max
alloy-al φ4.5~φ2.6mm/max
5、drawing dies：9 max (prepare by the buyer)
6、elongation ratio：23.6%，（from 1st to 8th ）
7、the final dies： 20% (for the final one)
8、drawing oil capacity：300kg/min
9、gear lubricate oil capacity：90kg/min
10、drawing velocity ：600mpm/max（match with coil speed）
11、drawing capstan：combination of steel rim，plating carbon tungsten in the rim surface
12、main motor：160kw dc motor
coiler： 11kw ac motor
13、take-up method：coiler（with frequency converter control ）
14、capstan：single shaft combination，drawing combination style，capstan diameterφ450mm，tungsten plating on the surface of the steel rim
15、transmission：motor driven by 8v high tension v-belt
final capstan is transmissed by teeth belt
16、operation direction：right hand（from left to right）
