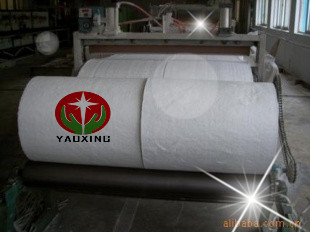

Aluminum Silicate Ceramic Fiber Spun Blanket, Packaging Type : White

Product Series：
our 1050 Ceramic Fiber Spun Blanket Yxtx-112
our 1260 Ceramic Fiber Spun Blanket Yxtx-212
our high Purity Ceramic Fiber Spun Blanket Yxtx-312
our high Aluminum Ceramic Fiber Spun Blanket Yxtx-422
our high Zirconium Ceramic Fiber Spun Blanket Yxtx-512
description：
1.our Ceramic Fiber Blanket Was Adopted Continuous Processing Method，the Fiber Interweaved Shapely After Being Needled，which of Excellent Tensile Strength. the Blanket Contains Not Any Bonding Agent 。
2.our Needled Blanket Has Various Density and Thickness So that Our Client Can have Many Choices, Which Will Bring the Perfect Insulating Framework and Profit.
3.our Ceramic Fiber Blanket Can Resist the Chemical Species Well, But Not the Hydrofluoric Acid, Phosphoric Acid and Strong Base.
4.our Ceramic Fiber Blanket have Excellent Capability of Resisting the Oil, After Being Dried It Will Repossess the Thermal Characteristic and the Physical Feature.
characteristic：
● 1.excellent Chemical Stability
● 2.excellent Thermal Stability
● 3.excellent Tensile Strength
● 4.low Thermal Conductivity
● 5.low Heat Storage
technical Index：
classification Temperature 1050 1260 1400
code txtx-112 txtx-212 txtx-312 txtx-422 txtx-512
shrinkage On Heating (%) 950℃×24h≤-3 1000℃×24h≤-3 1100℃×24h≤-3 1200℃×24h≤-3 1350℃×24h≤-3
theoretical
Thermal Conductivity
(w/m·k)（128kg/m3） 0.09(400℃)
0.176(800℃) 0.09(400℃)
0.176(800℃) 0.09(400℃)
0.176(800℃)
0.22(1000℃) 0.132(600℃)
0.22(1000℃) 0.76(600℃)
0.22(1000℃)
theoretical Density (kg/m3) 64/96/128
specification (mm) 7200/5000/3600/3000×610/1220×/20/30/40/50
according to Your Requirements
tensile Strength (mpa)(128kg/m3) 0.08-0.12
al2o3（％） ≥44 ≥45 ≥45 52~55 38~40
zro2 － 15~17
al2o3＋sio2（％） ≥96 ≥97 ≥99 ≥99 —
al2o3＋sio2+zro2（％） — — — — ≥99
fe2o3（％） ≤1.2 ≤1.0 ≤0.2 ≤0.2 ≤0.2
k2o+na2o（％） ≤0.5 ≤0.5 ≤0.2 ≤0.2 ≤0.2
package plastic Bag Inside, Woven Bags Outside
quality Control System iso9001-2000, Iso14001-1996
application：
● 1.the Material of Wall Lining and Back Lining of Industrial Furnace and the Sealing and Insulation Material of Expanded Gaps of Furnace Wall, Furnace Door, Furnace Top Lid, Etc.
● 2.insulating Material of High Temperature
● 3.excellent Materials to Produce Module and Folded Module
