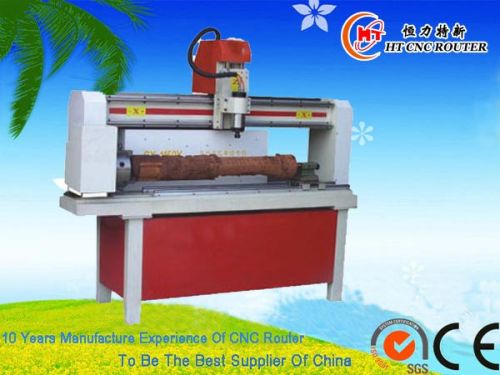

Aluminum Structure Woodworking CNC Router Machine

₹ 90,500 / 15000 15000 Set

MOQ1 Set(s)
Working voltageAC220V/50Hz
X,Z structureX gear wheel, Z ball screw, X,Z round guide way
Working Accuracy±0.05mm
Spindle Speed0-24000r/min
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Control SystemNCstudio
Drive MotorStepper
Repositioning Positioning Accuracy±0.05mm
Working voltageAC220V/50Hz
Working size1200*200*200mm
Table structureAluminum structure
Spindle Power2.2KW water cooling
DescriptionHot sales aluminum structure CE SGS woodworking cnc router machine
SoftwareWentai and Type3
Working Accuracy±0.05mm
Spindle Speed0-24000r/min
CommandG-code*.u00*.mmg*.plt
X,Z structureX gear wheel, Z ball screw, X,Z round guide way

We are offering woodworking cnc router machine.
Application
1.this model is specially for cylinder working.
2.the diameter of cylinder is arrange 80mm to 300mm, the length is 200-2000mm,also can be made according to customer’s request.
Feature
1.whole aluminium structure, all round guide, ball screw.
2.ncstudio control system.
3.wentai and type 3 software.
4.2.2kw water cooling spindle.
5.accessories: 20 cutters and 3 collets.
Specification
max diameter of cylinder 300mm
max length of cylinder 2000mm
x,y,z working area 1200*200*200mm
working accuracy ±0.05mm
repositioning positioning accuracy ±0.05mm
max. Rapid travel speed 15000mmmin
max. Working speed 8000mmmin
spindle power 2.2kw water cooling
spindle speed 0-24000rmin
drive motor stepper
x,z structure x gear wheel, z ball screw, x,z round guide way
table structure aluminum structure
command g-code*.u00*.mmg*.plt
working voltage ac220v50hz
control system ncstudio
software wentai and type3
control cabinet independent cabinet
n.w. 500kgs
packing size 1930* 800* 1600mm
