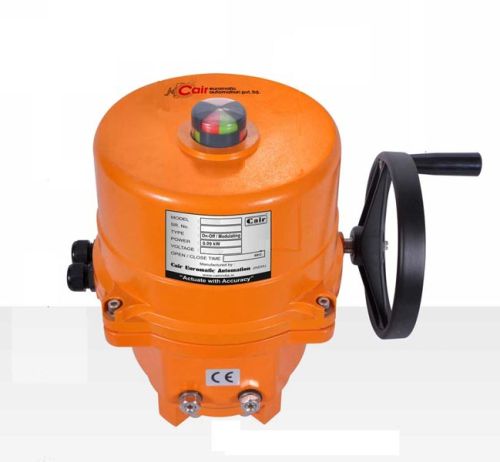

High Pressure Three Phase Quarter Turn Electrical Actuator, For Industrial, Pattern : Plain

Three Phase Quarter Turn Electrical Actuator we manufacture and export finds extensive usage in the Power Plant, Water Treatment System, Metallurgy, Petroleum Industry, Chemical Industry, Pharmacy, Paper Industry, Textile Industry, Food Processing, Building Automation, etc.
Features :

• Torque : 30 Nm to 12000 Nm
• Electric Actuators on 100 Nm and above are installed with torque switches for over-load protection
• Standard enclosure to water jet proof will water tight proof IP 67
• Squirrel cage motor is of encapsulated type, on high stall torque and low inherent force for seating & unseating of valves
• All motors are integrated with build-in thermal protection
• The unique cam plate design does not allow over travel of limit switches
• A pair of limit switches are activated by means of simple, reliable & adjustable cam plates, mounted directly and driven by center column

Various Options :

• Potentiometer Feedback
• Additional Limit Switches (2 Units)
• Modulating / Regulating Type
• On  Off Type
• On  Off Type with integral starter unit
• Signal Input : 4 ~ 20 mA / 1 ~ 5v DC / 2 ~ 10V DC

Standard Voltage :

• 415V AC
• 230V AC
• 24V DC
