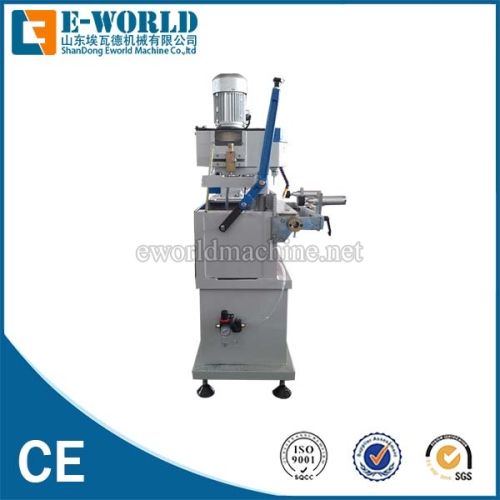

    Aluminum Window Copy Milling Machine

    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    Coveting 100% customer satisfaction, we as a prominent Manufacturer, Supplier and Exporter put a great effort in delivering excellence. Aluminum Window Copy Milling Machine is available in a variety....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 10 Years
    • building Nature of Business Supplier
    • Year of Establishment 2002

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    Coveting 100% customer satisfaction, we as a prominent Manufacturer, Supplier and Exporter put a great effort in delivering excellence. Aluminum Window Copy Milling Machine is available in a variety of sizes. It is manufactured by skilled engineers to make sure there is no compromise with the quality. Its durability, robustness and compact design make it an attractive alternative. Get your hands on the impeccable quality for minimal rates.
    Product Description :

    • The machine is used for copy-routing of different shapes of holes and grooves; the belt is accelerated to achieve the high milling speed (12000 r/min). It can process both Aluminum and PVC/UPVC/Plastic /Vinyl profile.
    • With the pneumatic driving system, it can process the water slots, pulley holes, lock holes and hardware holes it has the features of easy operation and high reliability.
    • We also have the double head copy-routing machine, if you want to improve efficiency, you can also choose the double head copy-routing machine.
    • Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to your true voltage.


    Technical Parameter

    Model numberLSX-100
    Working air pressure0.4~0.6Mpa
    Air consumption30L/min
    Power supply380V 50Hz
    Input power0.75kw
    Cutter rotational speed12000 r/min
    processing range290×90mm
    Outside dimension1000×1130×1500mm
    weight(about)170kg
